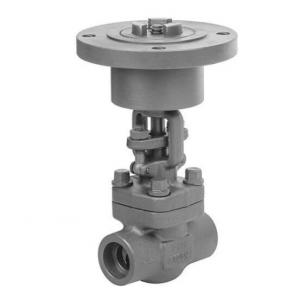

Forged steal globe valve Class 1500

Forged steal globe valve Class 1500Forged steal globe valve Class 1500
Forged steal globe valve Class 1500

Forged steal globe valve Class 1500 Product introduction

 China forged steel globe valve Class 1500 manufacturer, factory and supplier. Forged steel globe valve Class 1500 is made in accordance with API 602 standard for 900LB or1500LB,2500LB high pressure application and also for throttling applications. Forged steel globe valve Class 1500 can welded end, threaded end or flanged end with diffferent material for water,steam,oil application.

Forged steel globe valve Class 1500 can be bolted bonnet design or self presure seal bonnet design, Forged steel globe valve Class 1500 consists of a movable disc that connected to a stem, allow user to regulate the flow in pipeline by rotate the wheel shape handle. There is a directional marking on valve body to show the inlet and outlet for the fluids. Forged steel globe valve Class 1500 is made in forged steel A105,LF2,F11,F22,F91 or other forged steel material.

Forged steel globe valve Class 1500 specification
​Size
1/2" – 2"
Material
A105,LF2,F11,F22,F91 or other forged steel material
Working Pressure
​800LB or 900LB,1500LB,2500LB is optional
Connection Type
Socket weld, Butt weld end, Threaded end,Flanged end is optional.

Forged steel globe valve Class 1500 material
( The material is on base of A105, other forged material consult us)

No
Part Name
Material
1
Body + Seat
ASTM A105 + STL
2
Disc
ASTM A276 420
3
Stem
ASTM A182 F6A​
4
Gasket
SS304 + Graphite​
5
Bonnet
ASTM A105
6
Bonnet Nut
​ASTM A194 2H
7
Bonnet Bolt
ASTM A193 B7
​8
Packing
​Graphite
9
Pin
​ASTM A307-A
10
Gland
ASTM A276 410
11
Gland Flange
ASTM A105
12
Gland Nut
​ASTM A194 2H
13
Gland Bolt
ASTM A193 B7
14
Yoke Sleeve
​ASTM A276 410
15
Lock Nut
​Carbon Steel
16
Handwheel
​ASTM A197
