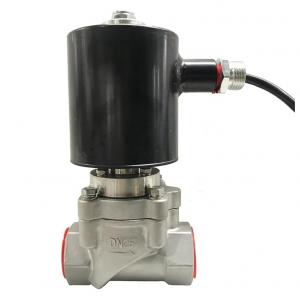

PN40 40Bar 4Mpa Thread solenoid valve Product introduction
PN40 40Bar 4MPa thread solenoid valve manufacturer, factory and supplier. PN40 40Bar 4MPa thread solenoid valve can be normally closed or normally open with DC24V, AC220V or other voltage. PN40 40Bar 4MPa thread solenoid valve is widely used in military, aerospace, shipbuilding heavy industry, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, industrial kiln, drying equipment, water supply and drainage, fire, food medical, cleaning equipment, fountain, pipeline medium automation control. PN40 40Bar 4MPa thread solenoid valve is the preferred product for automation control engineering, project transformation and equipment matching.
PN40 40Bar 4MPa thread solenoid valve specification:
Control mode: normally open/normally closed/self - holding
Power supply voltage: DC24 ~ 220V/AC24 ~ 380V
(AC220V AC110V DC12V DC24V,AC380V is optional)
Body material: stainless steel
Applicable medium: gas and liquid, etc
Diameter range: DN1 to DN600
Pressure range: 4MPa 40Bar or others
Temperature range: -100 to +200
Connection: thread/flange/welding
Diaphragm material:NBR<80°C ;FKM:<150°C;PTFE:<180°C
Working principle of PN40 40Bar 4MPa thread solenoid valve:
Normally closed: when the coil is energized, the electromagnetic core is drawn, the pressure relief hole is opened, the main piston is driven by the medium pressure, open the main valve port, the medium flow.
When the coil power, the main valve closed, medium cut-off.
Normally open: when the coil is energized, the electromagnetic core is drawn, the pressure relief hole is closed, the main piston is driven by the medium pressure, the main valve port is closed, the medium is cut off.
When the coil power, the main valve opening, medium flow.

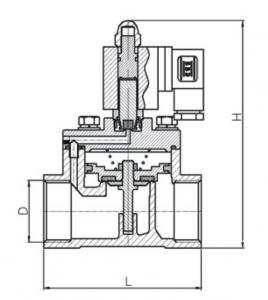

Note: The dimensions are indicated according to the pressure grade, special requirements can be customized.
The outlet pressure is greater than the inlet pressure, the medium will reverse the guide. Check valves can be installed or customized with check function.

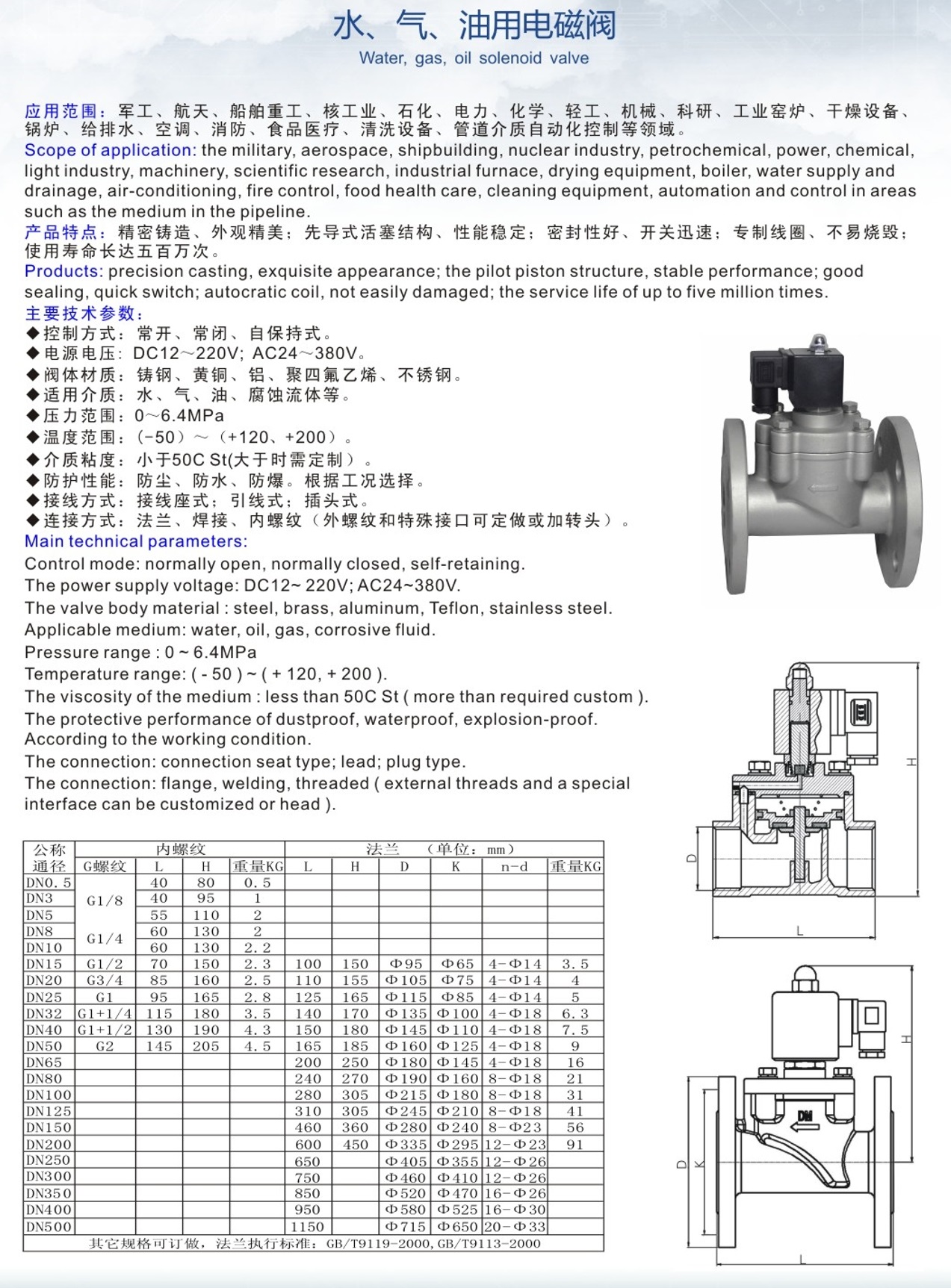

PN40 40Bar 4Mpa Thread solenoid valve Technical parameters
