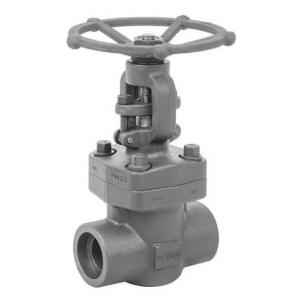

Welded end forged steel globe valve

Welded end forged steel globe valveWelded end forged steel globe valve
Welded end forged steel globe valve

Welded end forged steel globe valve Product introduction

 China forged steel globe valve manufacturer, factory and supplier. Welded end forged steel globe valve is made in accordance with API 602 standard for high pressure application and also for throttling applications.Welded end forged steel globe valve consists of a movable disc that connected to a stem, allow user to regulate the flow in pipeline by rotate the wheel shape handle. There is a directional marking on valve body to show the inlet and outlet for the fluids. Welded end forged steel globe valve is made in forged steel A105,LF2,F11,F22,F91 or other forged steel material.

Welded end forged steel globe valve specification
​Size
1/2" – 2"
Material
A105,LF2,F11,F22,F91 or other forged steel material
Working Pressure
​800LB,900LB,1500LB,2500LB
Connection Type
Socket weld, Butt weld end, Threaded end,Flanged end is optional.

Welded end forged steel globe valve material

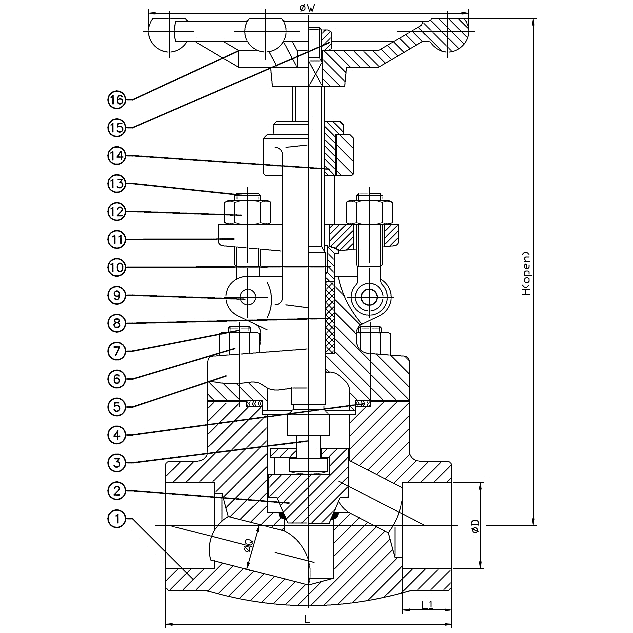

Welded end forged steel globe valve structure
( The material is on base of A105, other forged material consult us)

No
Part Name
Material
1
Body + Seat
ASTM A105 + STL
2
Disc
ASTM A276 420
3
Stem
ASTM A182 F6A​
4
Gasket
SS304 + Graphite​
5
Bonnet
ASTM A105
6
Bonnet Nut
​ASTM A194 2H
7
Bonnet Bolt
ASTM A193 B7
​8
Packing
​Graphite
9
Pin
​ASTM A307-A
10
Gland
ASTM A276 410
11
Gland Flange
ASTM A105
12
Gland Nut
​ASTM A194 2H
13
Gland Bolt
ASTM A193 B7
14
Yoke Sleeve
​ASTM A276 410
15
Lock Nut
​Carbon Steel
16
Handwheel
​ASTM A197
