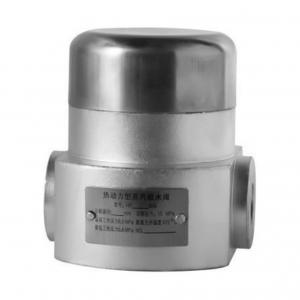

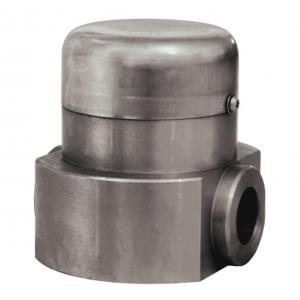

HR80A disc type steam trap manufacturer, factory and supplier. HR80A disc type steam trap is a type of thermodynamic disc steam trap with thermostatic air exhaust device.
HR80A disc type steam trap specification:
Model number：HR80A
Connection mode：Socket weld，Butt weld, Flanged end.
Diameter (mm):15,20,25
Working pressure (MPaG) PMO:8
Low working Pressure (MPaG):0.8
Operating temperature (℃) TMO: 475℃
Back pressure: 50% of the inlet pressure
Design conditions (non-working conditions) of the pressurized housing: Allowable pressure (MPaG)PMA:15
Allowable temperature (℃) TMA:550℃
HR80A disc type steam trap Features:
Air jacketed disc trap, can be used for high temperature, high pressure steam main pipe and turbine condensate discharge.
1. Online replacement diaphragm, easy maintenance, and low maintenance costs.
2. High precision grinding disc to ensure tight steam seal.
3. The air jacket reduces radiant heat loss, reduces no-load circulation, and extends service life.
4. Bimetallic ring thermostatic air discharge device ensures fast start.
5. Built-in large area filter extends trouble-free working time.
6. Long service life after hardening treatment.
Main basis for selection of HR80A disc type steam trap:
1. Condensate load (liquid discharge) kg/h
2. The working pressure MPa
3. Working pressure difference MPa
4. Valve body material and nominal pressure
5. Connection method and size
6. Application and steam type
* The ratio of condensate load is generally between 1.5-2
