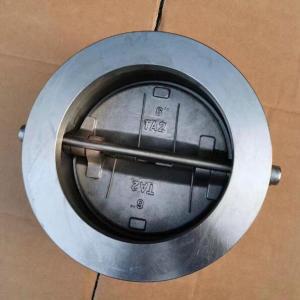

China Titanium Check Valve manufacturer, factory and supplier produce dual plate wafer titanium check valve and other type titanium check valves. Dual Plate Wafer Titanium Check Valve material can be TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12, ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4.
Dual plate wafer titanium check valve is widely used in chlor-alkali industry, soda industry, pharmaceutical industry, fertilizer industry, fine industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc.
Dual Plate Wafer Check Valve Specification:
Body material: Tatanium alloy TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12, ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4.
Nominal diameter:1.5"~48"(DN40~DN1200)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-40℃~+310℃
Dual plate wafer titanium check valve work principle
The main function of dual plate wafer titanium check valve is to prevent the fluid from flowing in the opposite direction, thus it only allows the medium to flow in one direction. It is an all purpose non return valve and designed to protect water supplies from contamination. The design of dual plate wafer titanium check valve is stronger, lighter and smaller than conventional swing check valves. Therefore, it is able to provide an alternative solution to the problems associated with swing check valves.

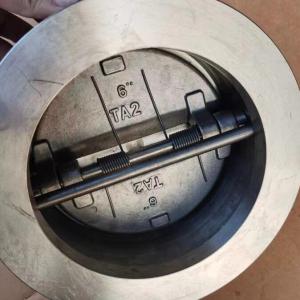

Dual plate wafer titanium check valve connects with two spring-loaded plates hinged on a central hinge pin. The dual plate wafer titanium check valve works in an automatic system that includes a hinge mechanism. When the flow has reduced, the plate is closed by the action of the torsion spring, without the need for reverse flow.
