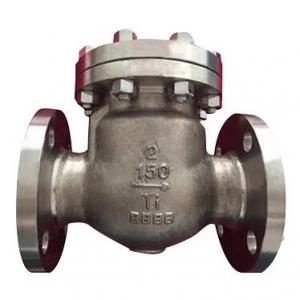

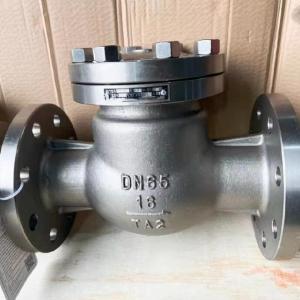

Titanium Alloy Swing Check Valve

Titanium Alloy Swing Check Valve Product introduction

　Titanium Check Valve manufacturer, factory and supplier in China. Titanium Alloy Swing Check Valve material grade can be TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12, ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4. Titanium Alloy Swing Check Valve is widely used in chlor-alkali industry, soda industry, pharmaceutical industry, fertilizer industry, fine industry, textile fiber synthesis and dyeing industry, basic organic acid and inorganic salt production, nitric acid industry, etc.

Titanium Alloy Swing Check Valve Specification:

Body material: Tatanium alloy TA1, TA2, TA9, TA10, TA12, TC4, Gr2, Gr3, Gr5, Gr12, ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4.

Nominal diameter:1/2"~48"(DN15~DN1200)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-40℃~+310℃

Titanium Alloy Swing Check Valve Features:

1. Titanium Alloy Swing Check Valve not only good corrosion resistance, but also light weight, high mechanical strength.

2. Titanium Alloy Swing Check Valve in the atmosphere, fresh water, sea water, high temperature steam almost no corrosion.

3. Titanium Alloy Swing Check Valve in aqua regia, chlorine water, hypochlorous acid, wet chlorine and other media have a good corrosion resistance.

4. Titanium Alloy Swing Check Valve is also very resistant to corrosion in alkaline media.

5. Titanium Alloy Swing Check Valve has very strong chloride ion (CI) resistance and excellent chloride ion corrosion resistance.

6. The corrosion resistance of Titanium Alloy Swing Check Valve in organic acid depends on the size of reducing or oxidizing acid.

7. Corrosion resistance of titanium check valve in reducing acid depends on whether there is corrosion inhibitor in the medium.
