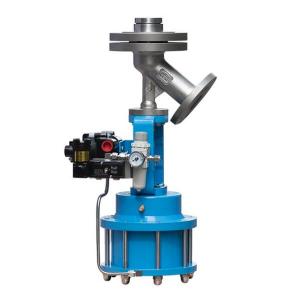

Pneumatic Actuated Flush Bottom Valve Product introduction
Pneumatic actuated flush bottom valve manufacturer, factory and supplier. Pneumatic actuated flush bottom valve is available with pneumatic actuation. Double acting or single acting pneumatic cylinders or diaphragm actuators for a linear actuation are used in Pneumatic Tank bottom Flush Valve. As a standard industry practice, for open into the tank, i.e., disc rising type flush bottom valve, diaphragm type actuators are preferred, while for open into valves, i.e. disc lowering type flush bottom valves, cylinder type actuators are preferred as higher stroke length is required for these types of valves. With these actuators, Pneumatic actuated flush bottom valve is automated thus allowing the liquid & slurry to be drained off remotely and with minimum labor. We offers pneumatic actuators with single-acting (fail-safe) design and double-acting (stay-put) design for the Pneumatic Tank bottom Flush Valve.
Pneumatic actuated flush bottom valve Specification:
|
| Pressure Rating |
PN10-PN64,ANSI 150 # / 300 # |
| Design |
Upward / Downward |
| Face to Face |
BS 6755 or others |
| End Connection |
ANSI B16.50 or others |
| M.O.C. |
CS / SS304 / SS316 / WCB / CF8 / CF8M & Higher Alloys on request |
| Option |
Hand Wheel Or Pneumatic actuator Operated |
| Operation |
Normal or Jacketed |
| Size Range |
40 mm to 300 mm |
Pneumatic actuated flush bottom valve Feature:
1. Automate liquid drain operation from the flush bottom valve and minimize the labor.
2. For the precise process control parameters,Pneumatic Tank bottom Flush Valve is optionally offered with Automation accessories such as Solenoid Valves, Limit switches, Positioner, Air Filter Regulators.
3. Pneumatic actuated flush bottom valve is available in the range of 15 NB to 300 NB and in BS, ANSI, DIN standards.
4. Pneumatic actuated flush bottom valve available in the design of Jacketed, Lined, and also for the Sanitary application.
5. Manual override provided for safety and emergency operations of pneumatic tank flush bottom valve.
6. Pneumatic actuated flush bottom valve is offered in Investment Casting as well as fabricated construction. Valves available in all metallurgy, like, Carbon Steel (CS ASTM A 216 WCB / WCC), S.S 304 (ASTM A 351 Gr CF8), S.S 316 (ASTM A 351 Gr CF8M) , S.S 304L (ASTM A 351 Gr. CF3), S.S 316L (ASTM A 351 Gr CF3M) , Alloy 20, ASTM A 351 Gr. CN7M) Hast alloy C-22 & c-276 (ASTM A 494 Gr. CW12MW / CX2MW ) and as per specifications.
7. The seat of valves- Conical Metal to Metal disc seating/ PTFE seating with option of fixed or Renewable seat. Further metal seating can be hard faced by StelliteTM where distortion of seat by aggressive liquid or slurry is common.
8. Pneumatic actuated flush bottom valve outlet discharge angle available in 45°and valves can also be tailored made to 60° of discharge angle.
9. Pneumatic actuated flush bottom valve can also be provided with temperature sensors to measure the temperature in the vessel.
10. Bolted Stuffing Box (Gland), easily adjustable & with Repackable service.
