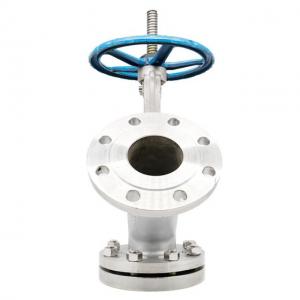

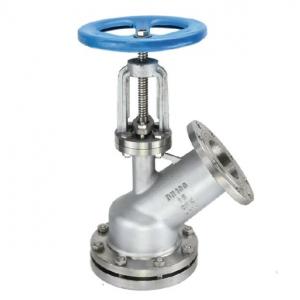

Stainless Steel Y Type Flush Bottom Valve

Stainless Steel Y Type Flush Bottom Valve Product introduction

　Stainless Steel Y Type Flush Bottom Valve Manufacturer, factory and supplier in China. Stainless Steel Y Type Flush Bottom Valve is mainly used for bottom discharge, discharge, sampling and no-dead zone shut-off operations of reactors, tanks and other containers. The bottom flange of the Stainless Steel Y Type Flush Bottom Valve is welded to the bottom of the tank and other containers, thus eliminating the residual phenomenon of process media usually at the outlet of the container. According to the needs of the actual situation, the bottom structure is designed for the flat bottom, theStainless Steel Y Type Flush Bottom Valve body is V-shaped, and the two working modes of lifting and lowering the valve disc are provided. The inner cavity of the valve body has a scour and corrosion-resistant sealing ring. At the moment of opening the valve, it can protect the valve body from being washed and corroded by the medium, and carry out special treatment on the sealing ring to make the surface hardness reach HRC56-62, which has the function of high wear resistance and corrosion resistance. The valve disc seal is surfacing cemented carbide on the cover when needed. And prevent scarring. At the same time, the design of short stroke valve disc is adopted.

Stainless Steel Y Type Flush Bottom Valve Specification:

Pressure Rating	PN10-PN65,ANSI 150 # / 300 #
Design	Upward / Downward
Face to Face	BS 6755 or others
End Connection	ANSI B16.50 or others
M.O.C.	CS / SS304 / SS316 / WCB / CF8 / CF8M & Higher Alloys on request
Option	Hand Wheel Or Pneumatic actuator Operated
Operation	Normal or Jacketed
Size Range	40 mm to 300 mm

Stainless Steel Y Type Flush Bottom Valve Feature:

1. Stainless Steel Y Type Flush Bottom Valve is installed at the bottom of the container, reactor and storage tank for sampling, discharging, discharging and no dead zone.

2. Remove residue from the bottom of the container. The valve disc is mainly divided into rising type and falling type, that is, up type and down type.

3. The difference between the two types of pneumatic discharge valves is that: the valve flap of the upper valve can rise to discharge, and the valve flap of the lower valve can fall.

4. Stainless Steel Y Type Flush Bottom Valve can discharge materials, and can also be customized plunger structure according to the requirements of field conditions. Pneumatic Y Type Flush Bottom Tank Valve is widely used in high viscosity liquids, containing.

5. Fibrous fluid, easy to crystallize fluid, easy to deposit fluid and particle containing fluid and other occasions, especially suitable for storage tanks, reactors.
