Flange Y type Strainer/Filter

Flange Y type Strainer/Filter Product introduction

China Y type strainer manufactrer, factory and supplier.Flange Y type Strainer Filter is designed for remove foreign matter from pipe lines and provides protection for pumps, meters, valves, and other similar mechanical equipment, which is called as Strainer. "Y" Type Strainers are named after their shape and normally used for course filtration. But with large filtration area can be used with fine mesh also. The Strainer improves the clearance in the medium, and prolongs the life of valves; protect expensive pumps, meters and other equipments. It is suitable for water, Air, Gas, petroleum, steam and other fluids. A Y type strainer can be installed in either a horizontal or vertical position (Downward flow) with the screen elementpointing downward. This allows the strainer screen to collect material in the strainer at the lowest point of the screen.

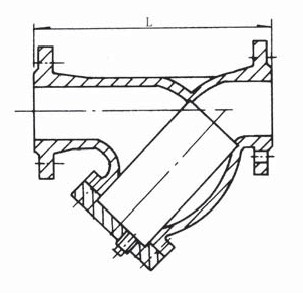

Flange Y type Strainer/Filter Main dimension

DN	"Inch	L	H	H1	Extension		Weightkg
15	1/2	125	70	150	L	H	2
20	3/4	145	70	150			3
25	1	160	80	160			3.8
32	1 1/4	180	90	180			6
40	1 1/2	200	100	240			7.2
50	2	220	130	250	300	130	10
65	2 1/2	260	165	350	350	165	17
80	3	280	195	390	400	195	20
100	4	320	230	450	450	230	32
125	5	350	300	520	500	300	53
150	6	380	335	580	550	335	66
200	8	495	420	690	650	420	110
250	10	595	500	800	775	500	165
300	12	640	580	950	900	580	225
350	14	700	640	1150			312
400	16	800	700	1360			500
450	18	850	790	1480			700
500	20	900	875	1650			900
