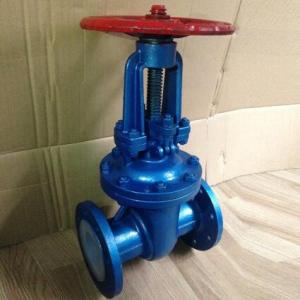

Fluorine telfon lined gate valve

Fluorine telfon lined gate valve Product introduction

　Fluorine telfon lined gate valve is mainly used for chemical industries,such as sulfuric acid, alkali etc.Fluorine telfon lined gate valve in wedge type construction. Body material we can provide ASTM A216 WCB, or stainless steel CF8, CF8M etc.Fluorine telfon lined gate valve liner material PFA, PTFE,FEP.

Fluorine telfon lined gate valve specification:
Design and manufacturing standard according to : API 600 or JIS standard.
Face to face dimension according to: ASME B16.10 or customized.
Flange Drilling according to ASME B16.5 or Customized.

Fluorine telfon lined gate valve performance:

Body Material	Carbon steel WCB, stainless steel 304 316 or others
Disc Material	Carbon steel WCB, stainless steel 304 316 or others
Liner	PTFE/FEP/PFA
O-Ring	Viton
Nominal Width	DN50 – DN600
Operating Pressure	PN10
Operating Temperature	-20 – 150⁰C
Connection	Flange
Operating Mode	Manual, Pneumatic, Electric
