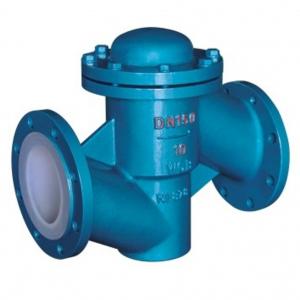

H41F46 FEP Lined Check Valve

H41F46 FEP Lined Check Valve Product introduction

　H41F46 FEP lined check vave is a kind of lift type check valve with fluoroplastic lining (such as FEP or PFA lined), which is also known as fluoroplastic-lined corrosion-resistant check valve. H41F46 FEP lined check vave is made by embedding (or laminating) polytetrafluoroethylene resin (or profiles processed) into the inner wall of the steel or iron pressure-bearing components of the valve (the same method can be applied to the inner lining of various pressure vessels and pipe fittings), or onto the outer surface of the valve internals. H41F46 FEP lined check vave is fabricated into various valves and pressure vessels by taking advantage of its unique performance in resisting strong corrosive media.

H41F46 FEP lined check vave Product Introduction
H41F46 FEP lined check vave with Fluoroplastic Inner Liner is specially designed for controlling corrosive or highly corrosive media. The inner cavity surface of the valve body is coated with various fluoroplastics as options, featuring high strength and excellent corrosion resistance. H41F46 FEP lined check vave is suitable for different working temperatures and fluid pipelines, and is used for one-way opening and closing to prevent the reverse flow of media on various pipelines or equipment.

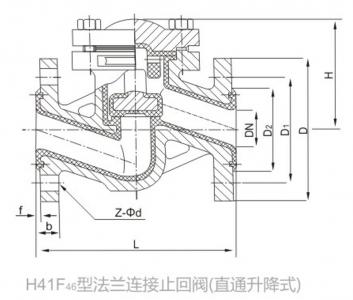

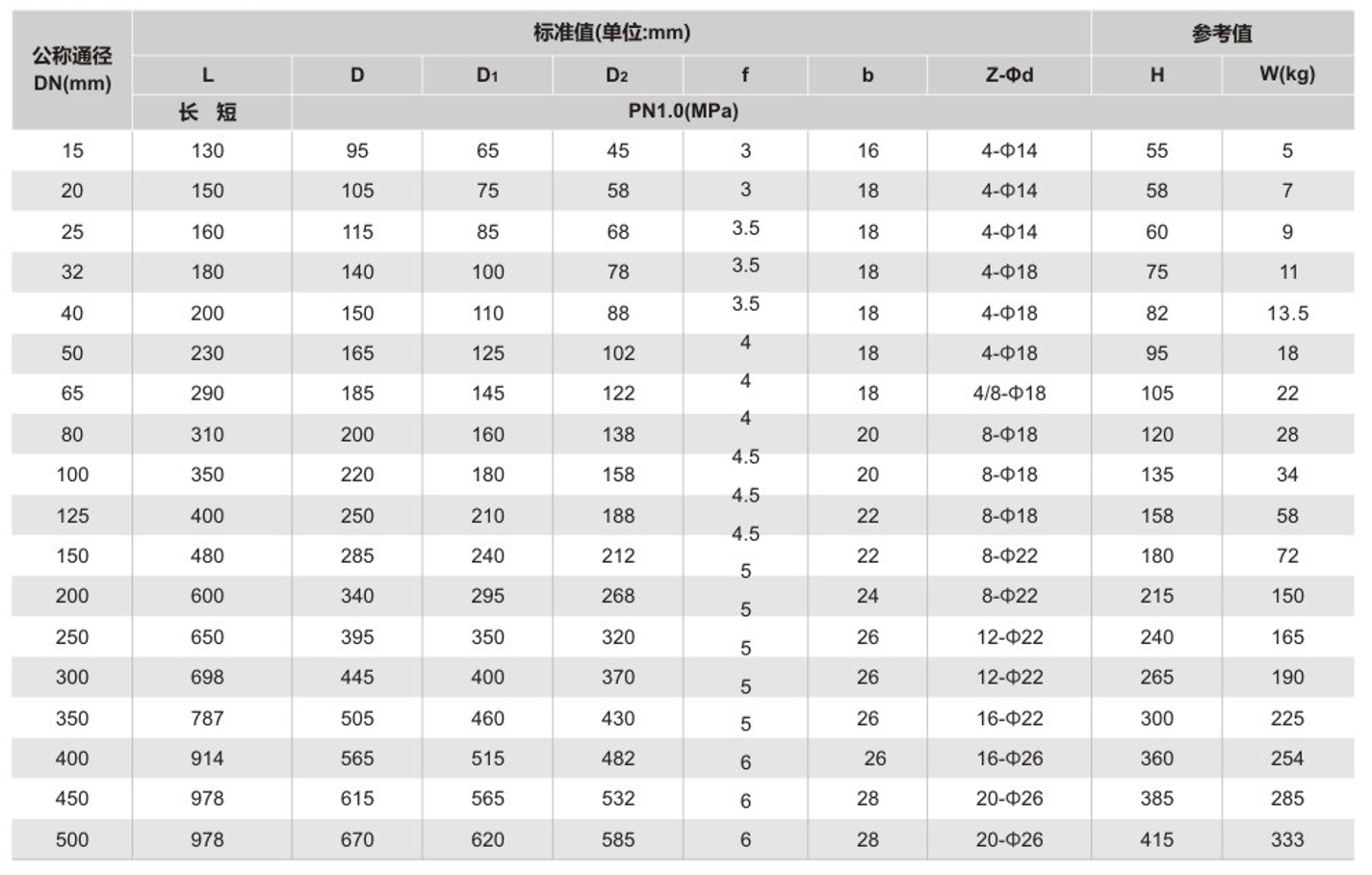

H41F46-10C FEP lined check vave dimension

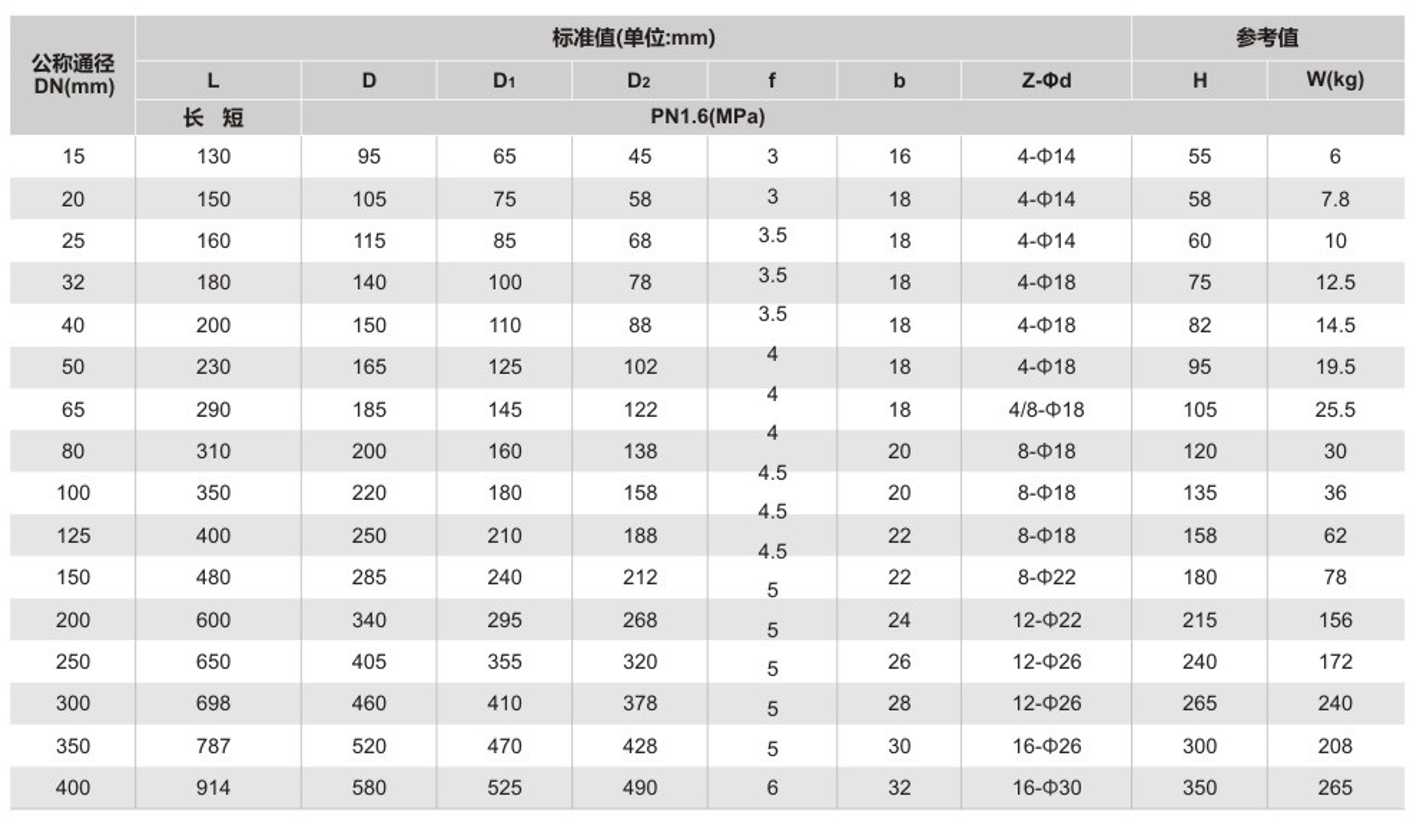

H41F46-16C FEP lined check vave dimension
