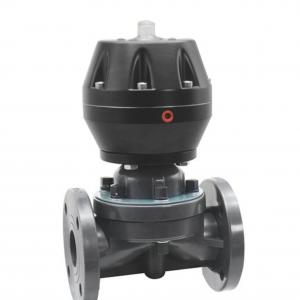

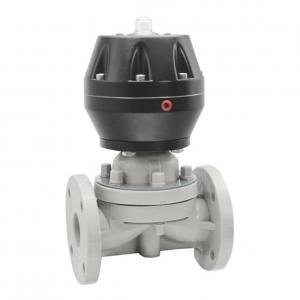

CPVC UPVC Pneumatic Diaphragm Valve manufacturer,factory and suplier.CPVC UPVC Pneumatic Diaphragm Valve adopts valve body with a corrosion-resistant lining and a corrosion-resistant diaphragm, an open-end structure without packing, a flexible diaphragm as the throttling element, and smooth valve body flow channels, the CPVC UPVC pneumatic diaphragm valve has the advantages of low torque, large flow capacity, no leakage, ease of use and reliability, as well as fire and explosion prevention. CPVC UPVC Pneumatic Diaphragm Valveis widely used in industrial automation systems for regulating the flow of strong acids, strong bases, highly corrosive media, high viscosity, particles, fibers, toxic substances and substances that are not allowed to be contaminated.
CPVC UPVC Pneumatic Diaphragm Valve features:
1. Operating temperature: Temperature range for chemical pipelines: -20℃ to 65℃, flame retardant property is self-extinguishing.
2. Hygiene performance: Load for water supply pipeline system in accordance with GB/T 17219.
3. Cost-effective: Relatively lower cost compared to stainless steel materials, different engineering proportions vary.
4. Corrosion resistance: Excellent corrosion resistance performance.
5. High pressure resistance: Burst pressure is 4 to 5 times the working pressure, ensuring system quality and safety.
6. Toughness: Has strength and toughness, will not be damaged under external force or significant changes in internal pressure.
7. Smooth pipe wall: Has less frictional resistance when transporting fluids, inhibits bacterial growth, and the fluid medium is not easily adhered.
8. Resistance to aging: Good chemical stability, material tests and foreign engineering application examples prove that the actual service life of UPVC is over 50 years.
9. Excellent insulation performance: Low heat conduction performance, approximately 1/200 of steel, saves insulation materials and construction costs.
10. Light weight: Equivalent to 1/5 of steel pipe and 1/6 of copper pipe, easy to handle and install, saves time and costs.
11. Convenient installation and construction: Can be connected by adhesion, flange, thread, or welding.
12. High comprehensive performance: Cost-effective, smooth inside and outside, no rust, no accumulation, excellent corrosion resistance, simple construction, no heat transmission, no electricity conduction, flame retardant, high mechanical strength, wide applicability.

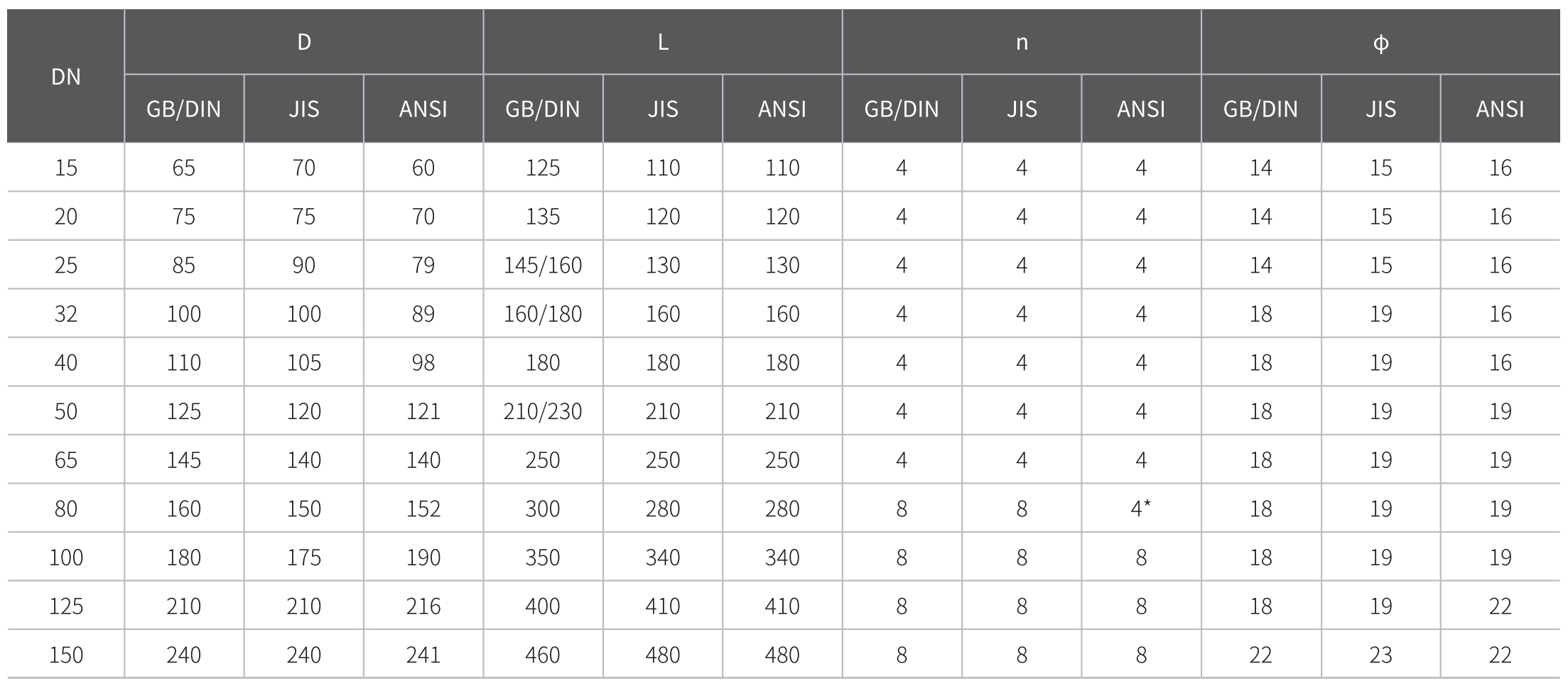

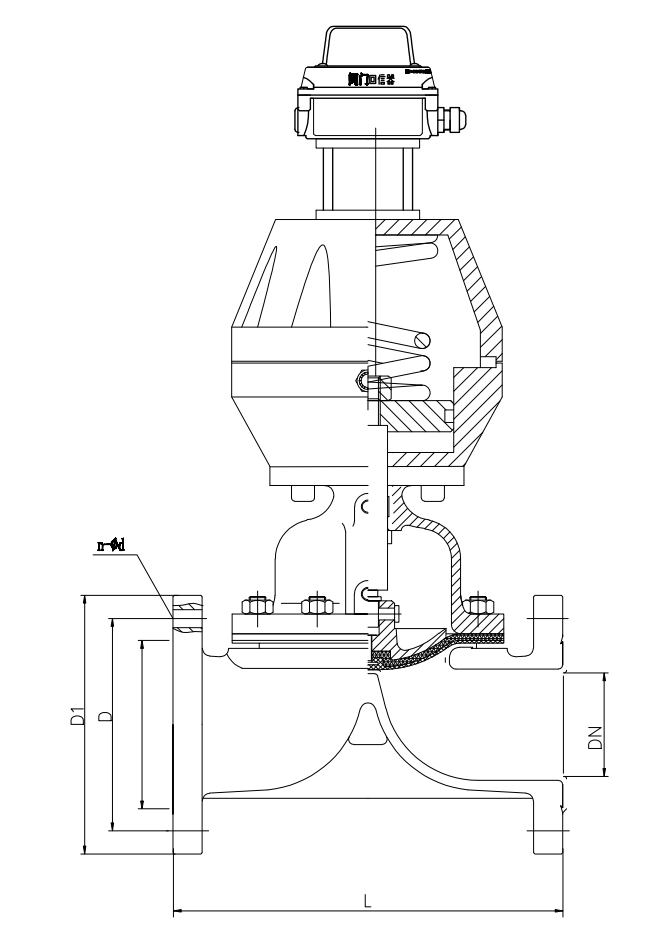

CPVC UPVC Pneumatic Diaphragm Valve dimension:
