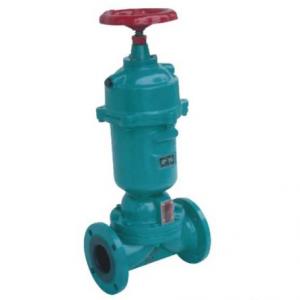

G6K41J-10 Pneumatic diaphragm valve

G6K41J-10 Pneumatic diaphragm valve Product introduction

G6K41J-10 Pneumatic diaphragm valve is a type of diaphragm valve that operates by the use of a normally open pneumatic actuator. The actuator is responsible for providing the power that is used to operate the diaphragm valve. G6K41J-10 Pneumatic diaphragm valve manufacturers design this valve with an automated system that ensures that the valve can start and stop on its own as required. G6K41J-10 Pneumatic diaphragm valve works by use of a diaphragm component that works with help of a stem and compressor to create linear vertical motion. This motion is responsible for starting and stopping fluid flow. G6K41J-10 Pneumatic diaphragm valve opens when the diaphragm moves upwards and closes when the diaphragm moves down to create a tight seal with the body.

Applications of G6K41J-10 Pneumatic diaphragm valve include paper and pulp industries, chemical processing, foods and beverages, firefighting, water supply, and wastewater treatment among others. Advantages of G6K41J-10 Pneumatic diaphragm valve are zero leakage, versatile, bi-directional flow, easy repair and cleaning, automatic operation, and simple and compact design.

G6K41J-10 Pneumatic diaphragm valve Technical parameters

G6K41J-10 Pneumatic diaphragm valve
1.Type: G6K41J-10
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

G6K41J-10 Pneumatic diaphragm valve Main part material

NO.	Part name	Material
1	Body	cast iron/WCB/304/316
2	Seals	Expanded Graphite
3	Bonnet	cast iron/WCB/304/316
4	Disc	cast iron/WCB/304/316
5	Gland	WCB/304/306
6	Stem	cast iron/WCB/304/316
7	Handle	cast iron

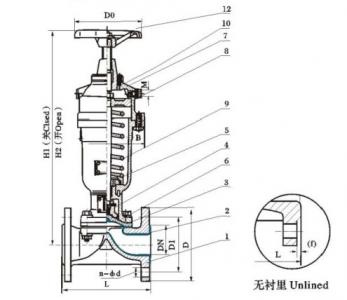

G6K41J-10 Pneumatic diaphragm valve Main dimension

DN (mm)	PN (MPa)	WP (MPa)	Dimension (mm)											Weight（kg）
			L		D1	D	D0	?	Z	H	Temp. （°C）	Medium		Weight（kg）
			J type	W type	D1	D	D0	?	Z	H	Temp. （°C）	J type	W type
20	1.6	1.6	121	117	75	105	70	13.5	4	103	less than 100	Corrosive medium	non corrosive medium	3
25			131	127	85	115	83	13.5		112				4.3
32			150	146	100	140	114	17.5		144				6.5
40			163	159	110	150	114			156				7.9
50			194	190	125	165	140			177				10.6
65	1.0	1.0	220	216	145	185	165			164.5				17.6
80			258	254	160	200	230		8	181.5				25.5
100			309	305	180	220	280			253				36.2
125			362	356	210	250	280			282				47.5
150			412	406	240	285	368			366.5				74
200			527	521	295	342	483	22						143
