EG6K41J-10 BS Pneumatic diaphragm valve

EG6K41J-10 BS Pneumatic diaphragm valve Product introduction

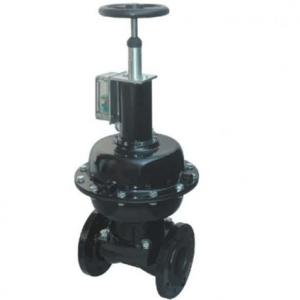

EG6K41J-10 BS Pneumatic diaphragm valve is a type of diaphragm valve with British standard that operates by the use of a normally open pneumatic actuator. The actuator is responsible for providing the power that is used to operate the diaphragm valve. EG6K41J-10 BS Pneumatic diaphragm valve manufacturers design this valve with an automated system that ensures that the valve can start and stop on its own as required. EG6K41J-10 BS Pneumatic diaphragm valve works by use of a diaphragm component that works with help of a stem and compressor to create linear vertical motion. This motion is responsible for starting and stopping fluid flow. EG6K41J-10 BS Pneumatic diaphragm valve opens when the diaphragm moves upwards and closes when the diaphragm moves down to create a tight seal with the body.

Applications of EG6K41J-10 BS Pneumatic diaphragm valve include paper and pulp industries, chemical processing, foods and beverages, firefighting, water supply, and wastewater treatment among others. Advantages of EG6K41J-10 BS Pneumatic diaphragm valve are zero leakage, versatile, bi-directional flow, easy repair and cleaning, automatic operation, and simple and compact design.

EG6K41J-10 BS Pneumatic diaphragm valve Technical parameters

EG6K41J-10 BS Pneumatic diaphragm valve
1.Type: EG6K41J-10
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

EG6K41J-10 BS Pneumatic diaphragm valve Main part material

NO.	Part name	Material
1	Body	cast iron/WCB/304/316
2	Seals	Expanded Graphite
3	Bonnet	cast iron/WCB/304/316
4	Disc	cast iron/WCB/304/316
5	Gland	WCB/304/306
6	Stem	cast iron/WCB/304/316
7	Handle	cast iron

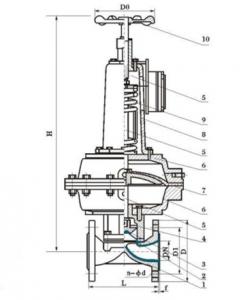

EG6K41J-10 BS Pneumatic diaphragm valve Main dimension

DN mm	PN MPa	MPa	L （mm）	D （mm）	D1 （mm）	n-φd （mm）	F （mm）	H1 （mm）	H2 （mm）	D0 （mm）	B	MPa	Air pipe in	cm3	Weight
15	0.6	0.6	125	95	65	4-14	2	-	-	-	-	-	-	-	-
20			139	105	75	4-14	2	-	-	-	-	-	-	-	-
25			145	115	85	4-14	2	306	320	120	94	0.4	10×1	2.395×102	7.5
32			160	140	100	4-18	2	410	430	140	120	0.4	12×1.25	6.082×102	14.5
40			180	150	110	4-18	3	415	435	140	120	0.4	12×1.25	6.082×102	16
50			210	165	125	4-18	3	463	488	160	185	0.4	12×1.25	1.235×102	24.5
65			250	185	145	4-18	3	620	660	160	245	0.5	16×1.5	3.725×102	30
80			300	200	160	4-18	3	627	687	200	245	0.5	16×1.5	3.725×103	51.5
100			350	220	180	8-18	3	719	769	240	330	0.5	16×1.5	9.458×103	86.5
125			400	250	210	8-18	3	804	872	320	380	0.5	20×1.5	1.409×104	133
150			460	285	240	8-22	3	920	1000	320	470	0.5	20×1.5	2.868×104	196.5
200		0.4	570	340	295	8-22	4	1145	1265	400	470	0.5	20×1.5	4.619×104	279.5
250		0.4	680	395	350	12-22	4	-	-	-	-	-	-	-
