G46J Straight type diaphragm valve Product introduction
G46J Straight type diaphragm valve designed with a straight flow passage. Unlike other diaphragm valves, G46J Straight type diaphragm valve does not have a raised weir. This design leads to a full-bore valve that enhances excellent performance at the low-pressure drop.
G46J Straight type diaphragm valve manufacturers recommend using this valve for applications prone to dirt, powder, and contaminated media. This is because such media would hardly be clogged in the valve due to the straight nature of the fluid passage. This type of valve is driven manually via a handwheel or by use of actuators. The choice operation (manual or automatic) depends on several factors among them customer preference. G46J Straight type diaphragm valve works by moving a diaphragm up or down to start or stop fluid flow. The diaphragm is usually connected to the handwheel or actuator via a component known as stem. G46J Straight type diaphragm valve can be used in different applications including water supply, foods and beverages, chemical processing, fire hydrants, and petrochemicals among others.
The automatic versions of G46J Straight through diaphragm valve include pneumatic, electric, and hydraulic straight-through diaphragm valves. Applications of G46J Straight type diaphragm valve include oil refinery, water supply, foods and beverages, paper and pulp, chemical processing, and fire fighting among others. The advantages of G46J Straight type diaphragm valve are bi-directional flow, versatility, zero leakage, easy to clean, repair, and do maintenance, compact and simple design.
G46J Straight type diaphragm valve Technical parameters
G46J Straight type diaphragm valve
1.Type: G46J-10 G46J-16
2.Size:DN15~300mm
3.Pressure:0.6-1.6MPa
4.Material: WCB,stainless steel ,carbon steel csst iron etc.

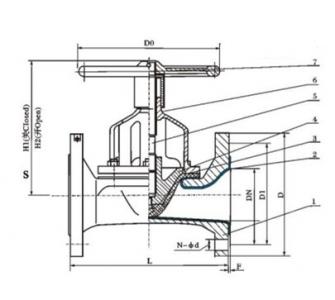

G46J Straight type diaphragm valve Main part material
| NO. |
Part name |
Material |
| 1 |
Body |
cast iron/WCB/304/316 |
| 2 |
Seals |
Expanded Graphite |
| 3 |
Bonnet |
cast iron/WCB/304/316 |
| 4 |
Disc |
cast iron/WCB/304/316 |
| 5 |
Gland |
WCB/304/306 |
| 6 |
Stem |
cast iron/WCB/304/316 |
| 7 |
Handle |
cast iron |
