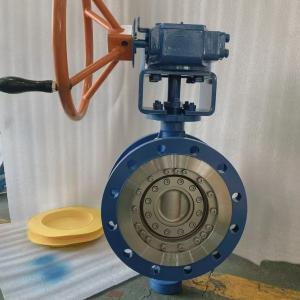

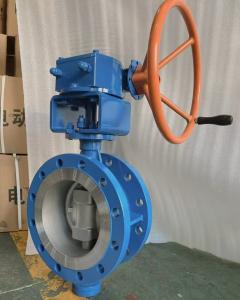

ANSI 150LB 300LB flanged butterfly valve manufacturer,factory and supplier. ANSI 150LB 300LB flanged butterfly valve can be metal seated or composite seated which have good performance for water,oil and gas system, ANSI 150LB 300LB flanged butterfly valve adopts tripple eccentric design with replaceable seat design, this structure enables the valve to be closed when the disc can be quickly removed from the seat, greatly reducing the friction and wear between the disc and the seat, but also to achieve the tighter sealing function, improve the sealing performance.
ANSI 150LB 300LB flanged butterfly valve drive mode can be manual, worm gear, pneumatic, electric, Pressure range ANSI 150LB or 300LB, nominal diameter DN40~2800mm, the material can be cast steel or stainless steel. ANSI 150LB 300LB flanged butterfly valve is widely used in water plants, power plants, steel plants, paper mills, chemical plants, food and other systems. Adjust and cut off use.
ANSI 150LB 300LB flanged butterfly valve specification:
Valve Manufacturing standards: API, ANSI, BS, DIN, JIS
Butterfly valve Sealing: Metal seated or 304/graphite composite seated
Butterfly Valve Structures: triple offset
Valve Size range:DN50mm - DN2800mm)
Pressure: Class 150/ 300 or 600
Applicable temperature: from -29 degrees C to 400 degrees C
Butterfly Valve Connection: wafer, flanged
ANSI 150LB 300LB flanged butterfly valve characteristics:
Sealing performance: Due to the eccentric design, the butterfly valve will press the seat when it is closed, forming a sealing surface, thus providing good sealing performance and reducing leakage.
Easy operation: The operation of the triple eccentric butterfly valve is usually relatively simple, and the flow of the fluid can be controlled by rotating the butterfly plate, which is suitable for frequent opening and closing occasions.
Fluid control: ANSI 150LB 300LB flanged butterfly valve can be used to regulate the flow, pressure and direction of the fluid, suitable for a variety of media, including water, steam, oil, corrosive chemicals, etc.
Easy maintenance: Because of the simple structure, the maintenance and overhaul of the double eccentric butterfly valve is relatively easy, which reduces the maintenance cost.
Widely used: ANSI 150LB 300LB flanged butterfly valveis widely used in petroleum, chemical, food, medicine, hydropower, ships, municipal and other fields.
Durability: High quality triple eccentric butterfly valves are usually made of wear-resistant materials that can withstand prolonged wear and extend service life.
Energy saving: Thanks to its streamlined design, the double eccentric butterfly valve has less resistance during fluid passage, helping to reduce energy consumption.
Temperature and pressure range: ANSI 150LB 300LB flanged butterfly valve can be designed to accommodate different temperature and pressure ranges according to different application requirements.
Automated control: D343X Triple offset soft seat butterfly valve can be equipped with electric or pneumatic actuators for remote control and automated operation.
