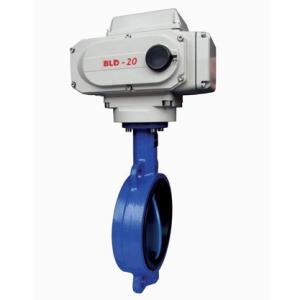

D971J Electric concentric butterfly valve

D971J Electric concentric butterfly valveD971J Electric concentric butterfly valve
D971J Electric concentric butterfly valve

D971J Electric concentric butterfly valve Product introduction

D971J Electric concentric butterfly valve is used in on-off and control flow of medium in vaired pipelines such as foodstuff,beverage,machine,chemical engineering,industrial enviromental proction,water treatment and building ect .Electric concentric butterfly valve Standard: ANSI, DIN, JIS, GB, etc
More Structure: Soft Seat Sealing ( Or metal seat sealing).
D971J Electric concentric butterfly valve Material :
1 Body : Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200;
Ductile Iron:ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15;
Stainless Steel: ASTM A351 CF8, CF8M;Carbon Steel: ASTM A216 WCB
2 Stem: Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM
A582 Type 416;
3 Taper Pin : Stainless Steel: ASTM A276 Type 304, Type 316;
4 Seat : NBR, EPDM, Neoprene, PTFE, Viton;
5 Disc : Ductile Cast Iron (Nickel plated):ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS- 400,Stainless Steel:ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
6 O-Ring: NBR, EPDM
7 Bushing :Polymer water-proof materials ,Nylon, Bronze;

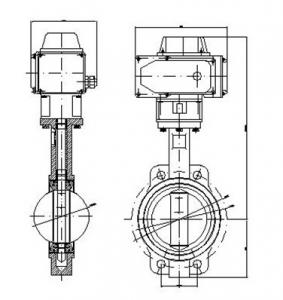

D971J Electric concentric butterfly valve Main dimension

DN L H HO A B 0.6MPa 1.0MPa 1.6MPa
DO n-Фd DO n-Фd DO n-Фd
50 43 63 438 125 125 110 4-14 125 4-18 125 4-18
65 46 70 453 125 125 130 4-14 145 4-18 145 4-18
80 46 83 478 125 125 150 4-18 160 8-18 160 8-18
100 52 105 519 125 125 170 4-18 180 8-18 180 8-18
125 56 115 713 325 245 200 8-18 210 8-18 210 8-18
150 56 137 749 325 245 225 8-18 240 8-22 240 8-22
200 60 164 843 325 245 280 8-18 295 8-22 295 8-22
250 68 206 947 363 313 335 12-18 350 12-22 355 12-26
300 78 230 1013 363 313 395 12-22 400 12-22 410 12-26
350 78 248 1046 363 313 445 12-22 460 16-22 470 16-26
400 102 289 1135 363 313 495 16-22 515 16-26 525 16-30
450 114 320 1328 465 439 550 16-22 565 20-26 585 20-30
500 127 343 1226 546 481 600 20-22 620 20-26 650 20-33
600 154 413 1394 546 556 705 20-26 725 20-30 770 20-36
700 165 478 1534 546 556 810 24-26 840 24-30 840 24-36
800 190 525 1159 546 556 920 24-30 950 24-33 950 24-39
900 203 585 1748 617 706 1020 24-30 1050 28-33 1050 38-39
1000 216 640 1805 632 706 1120 28-30 1160 28-36 1170 28-42
1200 254 755 2035 632 706 1340 32-33 1380 32-39 1390 32-48

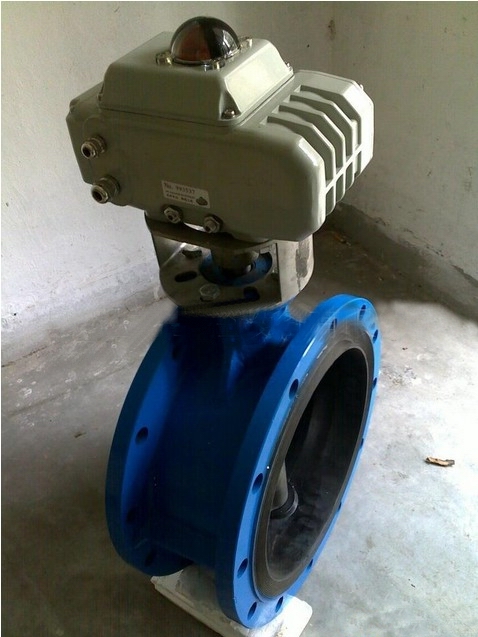

D971J Electric concentric butterfly valve Product show

电动对夹中线蝶阀
