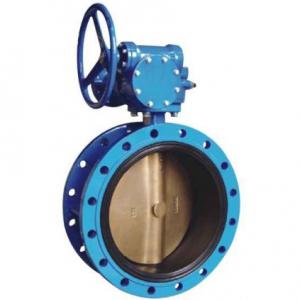

Flanged rubber seat butterfly valve

Flanged rubber seat butterfly valveFlanged rubber seat butterfly valve
Flanged rubber seat butterfly valve

Flanged rubber seat butterfly valve Product introduction

Flanged rubber seat butterfly valve is used in on-off and control flow of medium in vaired pipelines such as foodstuff,beverage,machine,chemical engineering,industrial enviromental proction,water treatment and building ect .Flanged rubber seat butterfly valve: ANSI, DIN, JIS, GB, etc
More Structure: Soft Seat Sealing ( Or metal seat sealing).


Flanged rubber seat butterfly valve Material :
1 Body : Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200;
Ductile Iron:ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15;
Stainless Steel: ASTM A351 CF8, CF8M;Carbon Steel: ASTM A216 WCB
2 Stem: Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM
A582 Type 416;
3 Taper Pin : Stainless Steel: ASTM A276 Type 304, Type 316;
4 Seat : NBR, EPDM, Neoprene, PTFE, Viton;
5 Disc : Ductile Cast Iron (Nickel plated):ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS- 400,Stainless Steel:ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
6 O-Ring: NBR, EPDM
7 Bushing :Polymer water-proof materials ,Nylon, Bronze;

Flanged rubber seat butterfly valve Technical parameters

Description Standard
Design and manufacture EN593
Face to face ISO5752 series14, EN558-1 series 14, DIN3202 F4
Flange and drilling ISO7005-2, EN1092,
Pressure test EN12266
Top flange of bare shaft valve ISO5211
Top flange on worm gearbox for e-actuator ISO5210

Flanged rubber seat butterfly valve Main part material

Name Material
Body ductile cast iron, WCB, stainless steel
Disc ductile cast iron, WCB, stainless steel, Al-bronze
Stem SS420, SS431
Disc seat ring EPDM,NBR,VITON
Body seat ring SS304
Retainer SS304, SS316
Shaft bearing Al-bronze, self-lubricating bearing
Bolt & nuts 8.8 grade galvanized, SS304
Coating epoxy coating, thickness: min. 250 microns, color code: RAl5015, 5017, 5010, and etc.

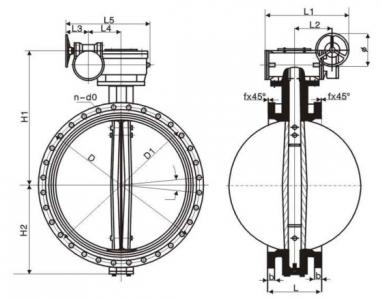

Flanged rubber seat butterfly valve Main dimension

Size
Length
Outline dimension
Flange connection
Weight
0.6MPa
mm
inch
L
H
H0
A
B
D
D1
D2
n-d
50
2
108
63
306
180
200
140
110
88
4-14
13
65
21/2
112
70
321
180
200
160
130
108
4-14
14
80
3
114
83
346
180
200
190
150
124
4-18
15.5
100
4
127
105
387
180
200
210
170
144
4-18
19.5
125
5
140
115
411
180
200
240
200
174
8-18
25.5
150
6
140
137
447
270
280
265
225
199
8-18
28.5
200
8
152
164
572
270
280
320
280
254
8-18
48
250
10
250
206
646
270
280
375
335
309
12-18
69
300
12
270
230
738
380
420
440
395
363
12-22
91
350
14
290
248
761
380
420
490
445
413
12-22
110
400
16
310
289
877
450
470
540
495
463
16-22
140
450
18
330
320
938
480
490
595
550
518
16-22
180
500
20
350
343
993
480
490
645
600
568
20-22
215
600
24
390
413
1131
480
490
755
705
667
20-26
290
700
28
430
478
1476
640
660
860
810
772
24-26
560
800
32
470
525
1533
640
660
975
920
878
24-30
910
900
36
510
585
1655
750
860
1075
1020
978
24-30
1500
1000
40
550
640
1765
850
900
1175
1120
1078
28-30
1750
1200
48
630
755
1995
850
900
1405
1340
1292
32-33
2180
1400
56
710
910
2310
1000
925
1630
1560
1510
36-36
2400
1600
64
790
1030
2595
1000
925
1830
1760
1710
40-36
2870
1800
72
870
1140
2810
1100
980
2045
1970
1918
44-39
3380
2000
80
950
1250
3100
1100
980
2265
2180
2180
48-42
4010
