Regulating electric butterfly valve Product introduction

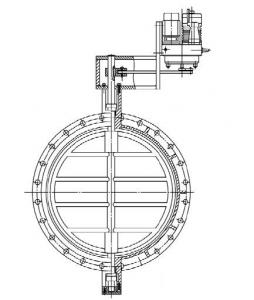

Regulating electric butterfly valve Main dimension
| Size | D | D1 | L | L1 | B | N-Φd |
| DN | ||||||
| 50 | 140 | 110 | 286 | 70 | 100 | 4-14 |
| 65 | 160 | 130 | 306 | 80 | 100 | 4-14 |
| 80 | 190 | 150 | 334 | 95 | 100 | 4-18 |
| 100 | 210 | 170 | 354 | 105 | 120 | 4-18 |
| 125 | 240 | 200 | 384 | 120 | 120 | 8-18 |
| 150 | 265 | 225 | 409 | 132 | 120 | 8-18 |
| 200 | 320 | 280 | 593 | 160 | 140 | 8-18 |
| 250 | 375 | 335 | 650 | 187 | 140 | 12-18 |
| 300 | 440 | 395 | 715 | 220 | 170 | 12-22 |
| 350 | 490 | 445 | 814 | 245 | 170 | 12-22 |
| 400 | 540 | 495 | 863 | 270 | 190 | 16-22 |
| 450 | 595 | 550 | 918 | 270 | 190 | 16-22 |
| 500 | 645 | 600 | 1016 | 322 | 160 | 20-22 |
| 600 | 755 | 705 | 1128 | 377 | 210 | 20-26 |
| 700 | 860 | 810 | 1233 | 430 | 210 | 24-28 |
| 800 | 975 | 920 | 1344 | 487 | 210 | 24-30 |
| 900 | 1075 | 1020 | 1560 | 537 | 250 | 24-30 |
| 1000 | 1175 | 1120 | 1660 | 587 | 250 | 28-30 |
| 1200 | 1405 | 1340 | 1890 | 687 | 250 | 32-33 |
| 1400 | 1630 | 1560 | 2670 | 760 | 300 | 36-38 |
| 1600 | 1830 | 1760 | 2810 | 895 | 300 | 40-36 |
| 1800 | 2045 | 1970 | 3020 | 995 | 300 | 44-39 |
| 2000 | 2265 | 2180 | 3220 | 1095 | 300 | 48-42 |

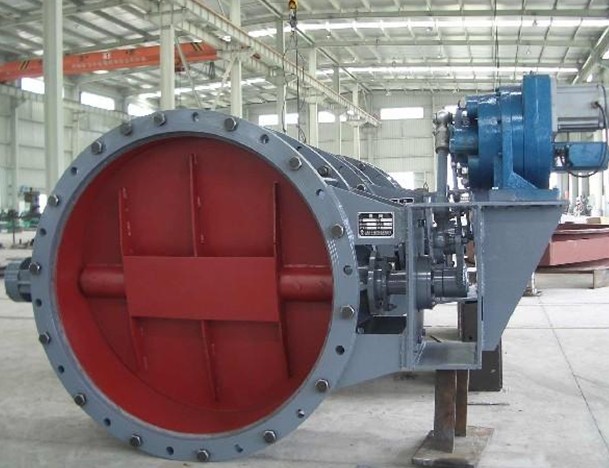

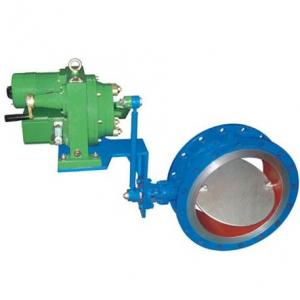

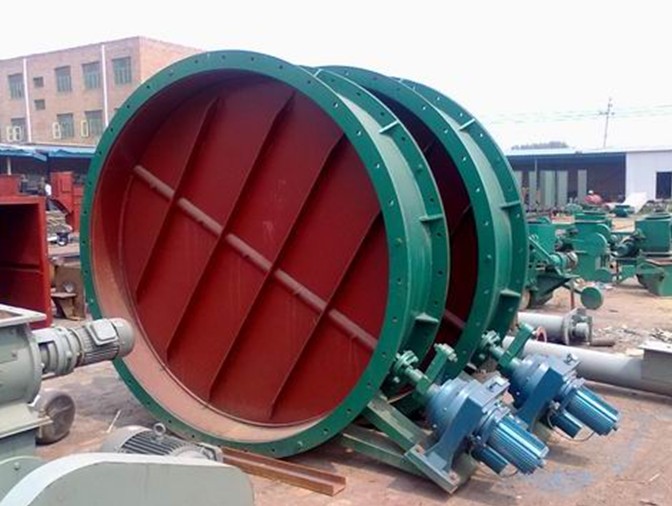

Regulating electric butterfly valve Product show
Regulating electric butterfly valve Related Products
