D363H Butt weld metal seat butterfly valve

D363H Butt weld metal seat butterfly valve Product introduction

D363H Butt weld metal seat butterfly valve is a typical high performance butterfly valve . They designed to API 609 and ASME B16.10 specifications. The connection way available in double flanged,lugged,wafer and butt welded. D363H Butt weld metal seat butterfly valve are used in the marine, water, oil, gas and process industries.

D363H Butt weld metal seat butterfly valve Main part material

1	Parts name	Material
2	Valve body	WCB
3	Disc	WCB
4	Stem	SS420
5	Seat	SS304
6	Packing	Soft graphite

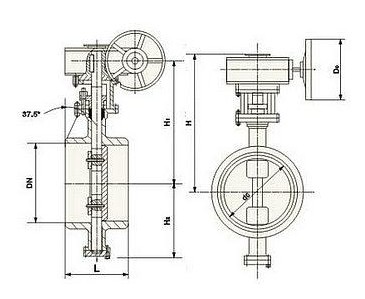

D363H Butt weld metal seat butterfly valve Main dimension

PN1.6MPa								PN1.6MPa
DN	Outline dimension							Outline dimension
(mm)	L	D	d	H	H1	A	B	L	D	d	H	H1	A	B
80	180	90	78	90	356	180	200	180	90	78	108	430	180	200
100	190	110	96	106	387	180	200	190	110	96	108	392	180	200
125	200	135	121	122	413	180	200	200	135	120	120	414	180	200
150	210	161	146	136	459	270	280	210	161	145	135	494	270	280
200	230	222	202	215	585	40	425	230	222	200	202	578	400	425
250	250	278	254	247	649	400	425	250	278	252	235	673	400	425
300	270	330	303	288	771	450	560	270	330	301	280	793	450	560
350	290	382	351	333	929	450	560	290	382	351	315	921	450	560
400	31O	432	398	359	993	535	580	310	432	398	355	1021	535	580
450	330	484	450	405	1053	535	580	330	484	448	370	1143	535	580
500	350	535	501	444	1245	535	580	350	535	495	420	1192	535	580
600	390	636	602	521	1750	570	660	390	636	595	490	1327	570	660
700	430	726	692	586	1519	750	550
800	470	826	792	659	1659	750	550
900	51O	926	892	720	1829	750	550
1000	550	1028	992	780	1949	900	750
1200	630	1228	1192	889	2243	1000	925
1400	710	1428	1392	1000	2462	1000	925

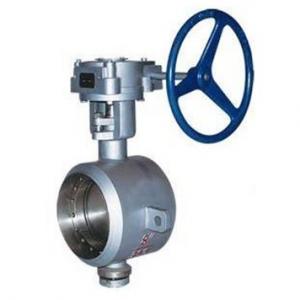

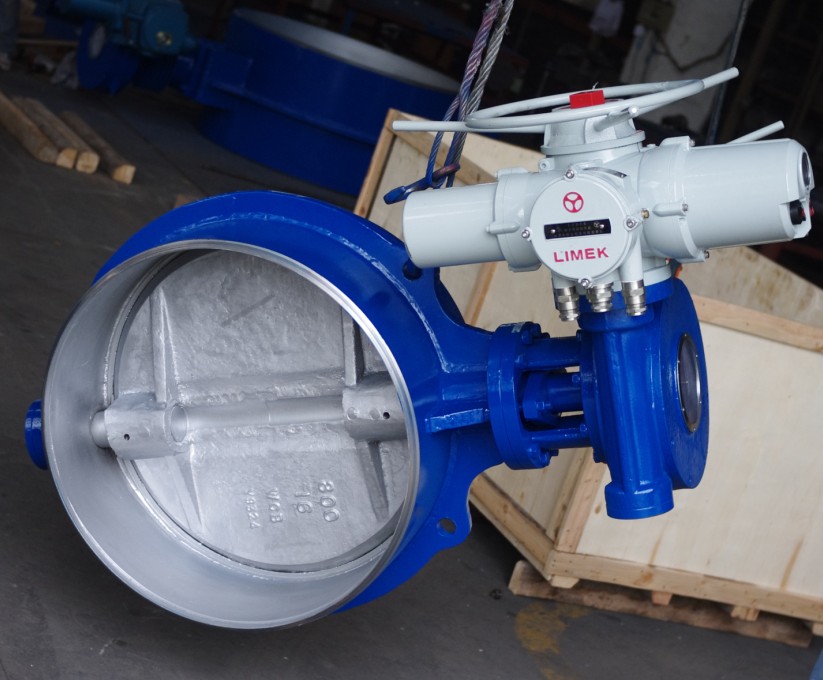

D363H Butt weld metal seat butterfly valve Product show
