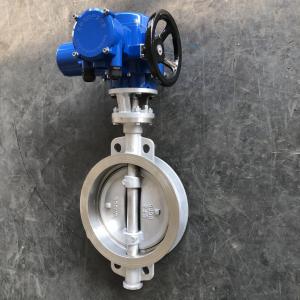

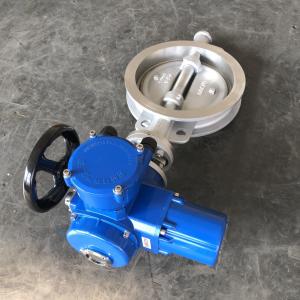

D973X Wafer Electric Butterfly Valve

D973X Wafer Electric Butterfly ValveD973X Wafer Electric Butterfly Valve
D973X Wafer Electric Butterfly Valve

D973X Wafer Electric Butterfly Valve Product introduction

　D973X Wafer Electric Butterfly Valve manufacturer, factory and supplier. D973X Wafer Electric Butterfly Valve adopts triple offset eccentric soft sealing structure, D973X Wafer Electric Butterfly Valve is widely used for regulating flow rate and broken flow body in industrial pipelines with medium temperature ≤80℃, such as gold treatment, electric power, petrochemical industry, water supply and drainage industry and municipal construction industry.

D973X Wafer Electric Butterfly Valve Specification
Working pressure: 1.0-1.6-2.5-4.0Mpa
Temperature of Media: -29℃~80℃
Power supply:  AC220V/ AC380V/DC24V or others
Medium:   Fresh water, sewage, sea, weak acid and alkali, air, steam, weakly corrosive fluid
Body Material: WCB
Application area: municipal construction, water treatment, electric power, water supply and drainage, water conservancy project, etc.

D973X Wafer Electric Butterfly Valve main dimension

Size（DN）
Outline dimension
Flange dimension
1.0MPa
1.6MPa
2.5MPa
L
H
H1
D1
4-Ф－M
D1
4-Ф－M
D1
4-Ф－M
50
43
350
112
125
Ф18
125
Ф18
125
Ф18
65
46
370
115
145
Ф18
145
Ф18
145
Ф18
80
49
380
120
160
Ф18
160
Ф18
160
Ф18
100
56
420
138
180
Ф18
180
Ф18
190
Ф23
125
64
460
164
210
Ф18
210
Ф18
220
Ф27
150
70
555
175
240
Ф23
240
Ф23
250
Ф27
200
71
605
208
295
M20
295
M20
310
M24
250
76
680
243
350
M20
355
M24
370
M27
300
83
800
283
400
M20
410
M24
430
M27
350
92
835
310
460
M20
470
M24
490
M30
400
102
915
340
515
M24
525
M27
550
M33
450
114
960
380
565
M24
585
M27
600
M33
500
127
1020
410
620
M24
650
M30
660
M33
600
154
1225
470
725
M27
770
M33
770
M36
700
165
1355
550
840
M27
840
M33
875
M39
800
190
1470
640
950
M30
950
M36
990
M45
900
203
1545
710
1050
M30
1050
M36
1090
M45
1000
216
1795
770
1160
M33
1170
M39
1210
M52
1200
254
1965
890
1380
M36
1390
M45
1420
M52
