DN2200 DN2400 Butterfly Valve
DN2200 DN2400 Butterfly Valve

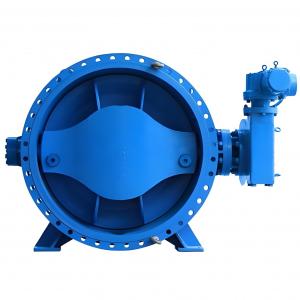

DN2200 DN2400 Butterfly Valve Product introduction
DN2200 DN2400 butterfly valve, China big size butterfly valve manufacturer, factory and supplier. DN2200 DN2400 butterfly valve adopts double eccentric or tripple eccentric structure, absorbs the structure and characteristics of similar foreign products, overcomes the defects in the use of the original product, and makes its life more durable and more reliable sealing. DN2200 DN2400 butterfly valve is suitable for various pipelines, specially installed in the outlet of the circulating water pump, for cutting off or regulating the flow of the medium, and can inhibit the impact effect produced when the pump starts and stops, without being affected by the flow direction of the medium.
DN2200 DN2400 butterfly valve drive mode can be manual, worm gear, pneumatic, electric, flange or chuck can be connected. The structure can adopt single eccentric, neutral, double eccentric, three eccentric structure, sealing structure, soft seal and hard seal can be used. Pressure range PN0.1-2.5Mpa, nominal diameter DN50~2800mm, the material can be cast steel or stainless steel. DN2200 DN2400 butterfly valve is widely used in water plants, power plants, steel plants, paper mills, chemical plants, food and other systems. Adjust and cut off use.
DN2200 DN2400 butterfly valve specification:
Valve Manufacturing standards: API, ANSI, BS, DIN, JIS
Butterfly valve Sealing: metal-seated, resilience-seated
Butterfly Valve Structures: double offset, triple offset
Valve Size range:DN50mm - DN2800mm)
Pressure: PN0.6MPa to PN2.5MPa
Double Offset Butterfly Valve Applicable temperature: from -20 degrees C to 100 degrees C
Butterfly Valve Connection: flanged
