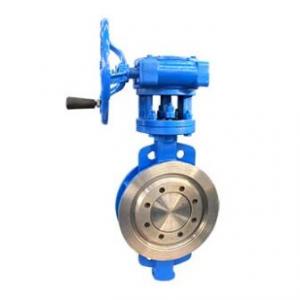

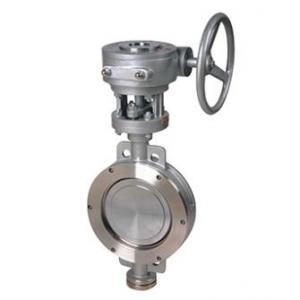

DN300 metal seat butterfly valve wafer

DN300 metal seat butterfly valve waferDN300 metal seat butterfly valve wafer
DN300 metal seat butterfly valve wafer

DN300 metal seat butterfly valve wafer Product introduction

 DN300 metal seat butterfly valve wafer is tripple eccentric,metal seated,wafer type, zero leakage with lever, gear,electric and pneumatic actuator.DN300 metal seat butterfly valve wafer can be used in oil,water,gas medium for different industry system.

DN300 metal seat butterfly valve wafer Specification
Structre type: wafer Type Three Eccentric Butterfly valve
Design standard: API609, MSS SP-68, EN 593
Flange dimension: ANSI B 16.5 etc
Face to Face: ANSI B 16.10, API 609
Pressure test: API 598-82
Size: 2"-48"

DN300 metal seat butterfly valve wafer Main part material
Body WCB, LCB, CF8, CF3, CF8M, CF3M, Duplex Steel etc
Disc WCB, LCB, Al-bronze, CF8, CF3, CF8M, CF3M, Duplex Steel etc
Stem 416, 316, 2Cr13, 1Cr18Ni9Ti, Monel
Seal ring 316+graphite, Fluorine plastic (PTFE)
Packing Flesxible graphite, fluorine plastic
