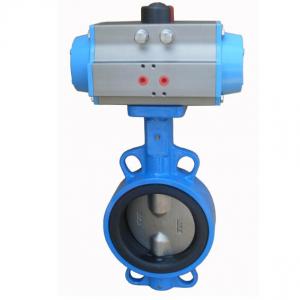

D671X-16Q Pneumatic driven butterfly valve Product introduction

D671X-16Q Pneumatic driven butterfly valve Product Overview

D671X-16Q Pneumatic driven butterfly valve make use of pressure to transfer piston’s reciprocating motion to rotatory motion, to realize switch of valve, it consist of cylinder, machinery execution mechanism and valve body. Users should assembly magnetic exchange valve, air cleaner, atomized lubricator Throttle valve, pressure reducing valve and others in the transportation air pipeline when operating, through central control room PLC system, can easily achieve remote and centralization control automatically, extremely improved the production efficiency.


D671X-16Q Pneumatic driven butterfly valve Product Features
● Axillare Adopting no-pin connection, compact structure, easy to transport, install and maintain.
● Use pressure air as power, through magnetic exchange valve, realize quick control of valve, energy-efficient.
● Adopting intelligent locating device, receiving 4-20mA signal, can realize perfect adjustment performance automatically.
● Soft seal, 90° on/off, zero leakage, long service life.
● Use signal back device, output corresponding passive electric signal.
● Based on specific working situation, such as power cut or air break suddenly, can provide normal close/open type of valve, also can assembly handle mechanism for manual operation.
● Various of material for parts, can adapted to multiple mediums.
● Surface coating with epoxy resin, well appearance and corrosion resistance.



ID671X-16Q ntroduction of parts and accessories

Valve the device used for controlling liquids’ direction, pressure, flow in the pipe network.
Double-action pneumatic actuator For starting or stopping the valve
Single-action pneumatic actuator Fully automatic on/off device through spring unit inside of cylinder when power cut or breakdown.

Solenoid valve This solenoid valve can directly fitted onto the side of the actuator housing without pipe connection providing open or close operation control of valve and actuator. Water-proof type (IP65), explosion-proof type (Eexd), single electric and double electric control type are available 1/4”connector of air inlet, 1/8”connector of vent outlet. Please contact us for requirement of speed control of open and close.

Limit switch box WES-01 limit switch box can transfer the position signal of valve and actuator to field and telecontrol station. It can be directly fitted on the top of actuator, it consist of a manual adjustable cam, mechanical indicator, sealed connector of cable(M18X1.5) two standard micro switches(JLXW1-A),AC220V, DC 24V of nominal voltage, 10A of nominal electric current. Water-proof type(IP67) and explosion-type are available.

Modular type design It can directly fitted onto the top of the actuator by connection accessories, positioner can accurately control open and close of valve from 0 to 90 degree. Standard pneumatic signal is 0.02-0.1 Mpa and standard electric signal is 0-10mA and DC 4-20mA direct, positive and negative operation system Zero position and limit adjusted. Please contact us for other control signal.

Air Treatment FRL including air relief valve, filter, lubricator. Of the gas source stable, clean and lubricate moving parts

Clutch Valve reducer The reducer can be used with pneumatic device, achieve 90°on/off. Working progress: lift spacer pin, rotate device 180°, separate worm rod and gear, when ventilating, cylinder drive valve shaft and gear; contra rotating device, worm rod and gear meshed, rotate the hand wheel, drive valve shaft, also realize motion of cylinder piston.



D671X-16Q Pneumatic driven butterfly valve Technical parameters

D671X-16Q Pneumatic driven butterfly valve Adoption Standard
Item
Adoption standard Optional standard
Design Manufacture Acceptance
GB/T12238-2008 ISO/DIN10631、API598
Valve structure lengh
GB/T12221-2005 ISO5752
Valve flange length
GB/T9113-2010 ANSI B16.5、ISO7005、JIS B2238、2239
Inspection
GB/T13927-2008 ISO/DIN5208
Mark
GB/T12220-1989 ISO05209



D671X-16Q Pneumatic driven butterfly valve Performance parameter:

Product name
Lug type Pneumatic actuated butterfly Valve
Air resource
Clean and non-corrosive air
Connection
Wafer Lug
Pressure

8Bar max, 3Bar min, 5.5Bar Normal

Nominal diameter
DN40-DN800 DN50-DN600

Connector

G1/4" NAMVR,can install solenoid valve directly.

Nominal pressure
PN10/PN16

Voltage

AC220V,DC24V

Test pressure

Housing:PN×1.5

Seal:PN×1.1

Input signal
4-20mA
Surface coating
Epoxy Coating
Rotation angle

0~90°and at the on/off area adjustment range:±4

Driven type
Pneumatic actuated device

Stroke Time

≤0.5-10S

Applicable temperature
-30℃~180℃

Temperature

-20~70℃

Applicable mediums
Water, salt, acid, alkali, nature gas, air, alcohols, oils, food, steam, etc. Optional Accessories Solenoid valve, reply device、electropneumatic positioner 、Air Treatment FRL、handle mechanism





D671X-16Q Pneumatic driven butterfly valve Main part material

D671X-16Q Pneumatic driven butterfly valve Optional materials for parts
Name
Optional Materials
Body
Ductile Iron(DI), Gray Cast iron(CI), Cast Steel(WCB), Stainless steel(CF8/CF8M)
Disc
Ductile iron nylon coating(N),Plated ductile iron(D), CF8(P), CF8M(R),Aluminum bronze(T)
Seat
EPDM , NBR. PTFE, VITON, EP, EPDM ,EPDM
Shaft
416SS 316SS 304SS CS45#coating with Ni,P
Actuator Cast aluminum pneumatic actuator



Pneumatic driven butterfly valve Cylinder air consumption calculation.

● Double action air consumption (L/min)= cylinder (opening volume + closing direction volume) ×[(air supplying Pressure(Kpa)÷101.3)/101.3]×time/min。
● Single action air consumption (L/min)= cylinder opening volume×(air supplying Pressure(Kpa)+ 101.3)÷ 101.3)×time/min。

D671X-16Q Pneumatic driven butterfly valve Main dimension

D671X-16Q Pneumatic driven butterfly valve Overall Dimensions:
Specs

H

H1

H2

L

L1

L2

ΦD

N-Φ

N-M

mm

in

PN10

PN16

PN10

PN16

PN10
PN16
DN40
1.5"
208
138
81
33
155
70
110
4-19
4-16
DN50
2"
208
140
81
42
155
70
125
4-19
4-16
DN65
2.5"
225
150
99
45
168
83
145
4-19
4-16
DN80
3"
250
160
99
45
168
83
160
8-19
8-16
DN100
4"
285
180
120
52
219
96
180
4-19
8-16
DN125
5"
309
190
133
55
249
106
210
4-19
8-16
DN150
6"
340
200
147
56
274
122
240
4-19
8-20
DN200
8"
596
240
187
60
354
150
295
4-23
8-20
12-20
DN250
10"
475
270
211
66
417
170
350
355
4-23
4-26
12-20
12-24
DN300
12"
550
310
231
77
452
185
400
410
4-23
4-26
16-20
12-24
DN350
14"
604
334
271
76
539
215
460
470
4-23
4-26
16-20
16-24
DN400
16"
722
400
294
86
605
236
515
525
4-26
4-30
16-24
16-27

DN450

18"
760
422
336
105
671
261
565
585
4-26
4-30
20-24
20-27
DN500
20"
849
480
377
131
723
294
620
650
4-26
4-33
20-24
20-30
DN600
24"
1024
562
414
152
857
335
725
770
4-30
4-36
20-27
20-33
DN700
28"
1144
624
470
163
935
385
840
4-30
4-36
-----
-----
DN800
32"
1263
672
526
188
1035
520
950
4-33
4-39
-----
-----



D671X-16Q Pneumatic driven butterfly valve Product order instruction

D671X-16Q Pneumatic driven butterfly valve Installation instruction

1. Pipeline wafer type flange standard should be in accordance with butterfly valve, dedicated flange of butterfly valve is recommended for wafer type connection flange.
2. Users should check the working conditions if it is accordance with the butterfly valve.
3. Lumen and sealing surface should be cleared up before installation, no waste adhering.
4. Both side of valve seat extruded as seal washer of flange, no need to use seal washer for butterfly valve
5. The D671X pneumtic butterfly valve could be installed at horizontal, vertical and any other angles of pipelines, and could be used in two-way.
6. The D671X penumatic butterfly valve can not be installed at the corners of pipeline, no handstand installation allowed.
7. The D671X pneumatic butterfly valve must be closed when installing, to assure valve plate not to impact with the pipeline flange.
8. Verify flange welded without defects. Can not weld after installation to avoid to scald rubber articles and antiseptic coatings.
9. For abnormal situations on switching, should check it out, remove faults, do not open or close the valve with external force.
