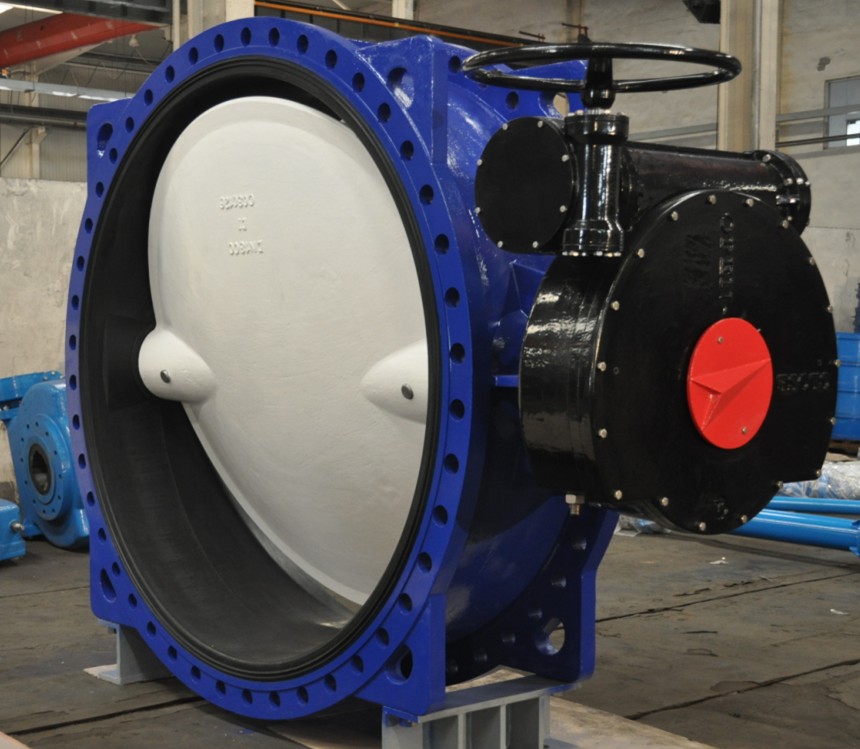

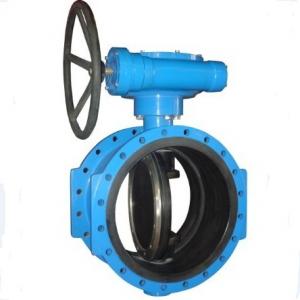

Flanged rubber seat butterfly valve is used in on-off and control flow of medium in vaired pipelines such as foodstuff,beverage,machine,chemical engineering,industrial enviromental proction,water treatment and building ect .Flanged rubber seat butterfly valve standard: ANSI, DIN, JIS, GB, etc
More Structure: Soft Seat Sealing ( Or metal seat sealing).


Flanged rubber seat butterfly valve Material :
1 Body : Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200;
Ductile Iron:ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15;
Stainless Steel: ASTM A351 CF8, CF8M;Carbon Steel: ASTM A216 WCB
2 Stem: Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM
A582 Type 416;
3 Taper Pin : Stainless Steel: ASTM A276 Type 304, Type 316;
4 Seat : NBR, EPDM, Neoprene, PTFE, Viton;
5 Disc : Ductile Cast Iron (Nickel plated):ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS- 400,Stainless Steel:ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
6 O-Ring: NBR, EPDM
7 Bushing :Polymer water-proof materials ,Nylon, Bronze;
