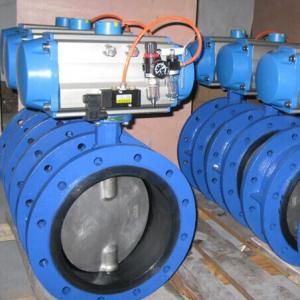

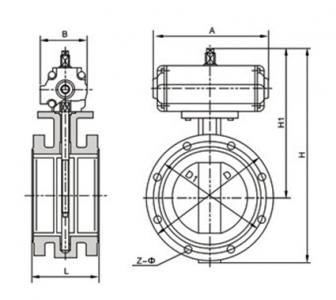

D641X pneumatic flanged butterfly valve

D641X pneumatic flanged butterfly valve Product introduction

D641X pneumatic flanged butterfly valve standard:

Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598

D641X pneumatic flanged butterfly valve design characters:

1.Correcting holes are made on flange according to standard, easy correcting during the installation.
2.Through-out bolt or one-side bolt used. Easy replacing and maintenance.
3.Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.

D641X pneumatic flanged butterfly valve performance:

Nominal Diameter:DN50-DN1200
Nominal Pressure PN (MPa): 1.0, 1.6, 2.0, 2.5
Testing pressure (water) Ps (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure

D641X pneumatic flanged butterfly valve Technical parameters

Description	Standard
Design and manufacture	EN593
Face to face	ISO5752 series14, EN558-1 series 14, DIN3202 F4
Flange and drilling	ISO7005-2, EN1092,
Pressure test	EN12266
Top flange of bare shaft valve	ISO5211
Top flange on worm gearbox for e-actuator	ISO5210

D641X pneumatic flanged butterfly valve Main part material

Name	Material
Body	ductile cast iron, WCB, stainless steel
Disc	ductile cast iron, WCB, stainless steel, Al-bronze
Stem	SS420, SS431
Disc seat ring	EPDM,NBR,VITON
Body seat ring	SS304
Retainer	SS304, SS316
Shaft bearing	Al-bronze, self-lubricating bearing
Bolt & nuts	8.8 grade galvanized, SS304
Coating	epoxy coating, thickness: min. 250 microns, color code: RAl5015, 5017, 5010, and etc.
