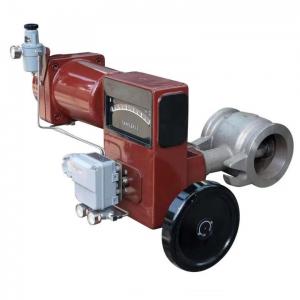

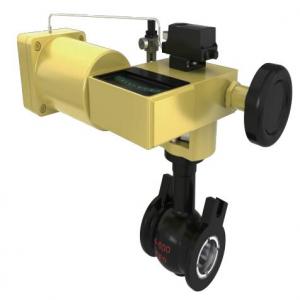

35002 Series Camflex Rotary Control Valve

35002 Series Camflex Rotary Control Valve Product introduction

　Masoneilan 35002 Series Camflex Rotary Control Valve China manufacturer, factory and supplier. The 35002 Series Camflex Rotary Control Valve features an extension bonnet, hardened trim, and high-performance low-emission packing, providing broad application coverage and exceptional long-term reliability. Complete line of eccentric plug control valve effectively combining enhanced control performance, simplicity and long-term reliability for a broad range of applications.

35002 Series Camflex II Eccentric Plug Rotary Control Valve is a novel structure control valve. The gyration center of plug of 35002 Series Camflex Rotary Control Valve is not concentric with rotary axis, which can ensure the reliable sealing and prolong the service life with a designed eccentricity. Also Masoneilan Type Camflex rotary control valve has the characteristics of small size , large flow capacity, wide adjustable range, good sealing performance, large pressure drop applicable, wide temperature range applicable and so on. The control valve equipped with pneumatic or electric actuator can meet various requirements of fluid control which is mainly used in the occasions of large viscosity and medium with solid.

35002 Series Camflex Rotary Control Valve Specification

Sizes: 1" through 24" (25 through 600 mm)

Ratings and Connections:Flanged: ANSI 150 – 600

Flangeless: ANSI 150 – 600 UNI-DIN 10 – 100

Screwed: NPT (1" through 2")

Body Materials: Carbon steel Stainless steel High nickel alloy

Actuator: Model 35 spring diaphragm

Model 70 Series cylinder

Trim: Eccentric rotary plug

Inherent Characteristics: Linear

35002 Series Camflex Rotary Control Valve Feature

The 35002 Series Camflex Rotary Control Valve is a heavy-duty, automatic-throttling control valve that incorporates the following features:

• The flangeless body rating is from ANSI Class 150 to Class 600.

• Heavy-duty guide lugs assure quick, positive alignment during installation.

• The flanged version 35002 Series Camflex Rotary Control Valve is available at 1 in. through 12 in. (25 mm through 300 mm) in 150 or 300 ANSI, and 1 in. through 8 in. (25 mm through 200 mm) in600 ANSI.

• Separable bonnet design is available.

• Straight through flow pattern provides greater flow capacities.

• Standard integral extension bonnet allows for a wide range of fluid temperature applications (-320˚F to 750˚F), (-196˚C to 400˚C).

• The unique self-aligning eccentric rotating plug provides tight shutoff and low dynamic forces.

• A large variety of reduced-trim options are available in all sizes.

• The triple, over-sized bearing system provides exceptional plug shaft guiding.

• The shouldered shaft design is utilized.

• An optional patented differential velocity device (DVD) separates compressible flowstreams into a high velocity core and a low velocity envelope flowstream. This provides up to 18 dBA noise attenuation.

• Optional alloy constructions are available.

• The powerful, low-profile, spring-diaphragm actuator guarantees positive fail-safe action.

• Splined shaft and actuator linkages, combined with lowfriction techniques, contribute to reduced deadband and hysteresis.

• The 35002 Series Camflex Rotary Control Valve position indicator is large and highly visible.

• The actuator linkage (purge option available) is totally enclosed)
