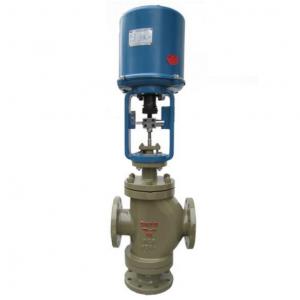

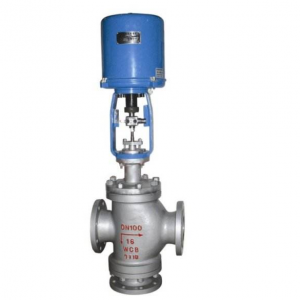

Electric 3 way control valve

Electric 3 way control valveElectric 3 way control valve
Electric 3 way control valve

Electric 3 way control valve Product introduction

 Electric 3 way control valve has converging and diverging structure for choice,electric 3 way control valve adopts double valve cores up and down guide structure, equipped with multiple spring actuator. Electric 3 way control valve can replace two sets two-way valve and widely used in many occasions to regulate pressure, flow rate, temperature and liquid level.

Electric 3 way control valve body has the features as below:
1.compact structure, light weight, sensitive action, low pressure drop loss, new high allowable pressure, large valve capacity, accurate flow characteristics and convenient maintenance, etc.,
2.Electric converging 3-way control valve can be used for various working conditions, especially for the temperature control system of oil industry heat exchange and automatic control of other industries.
3.Spool structure with side guiding, well stability, no vibration, low noisy, Electric converging 3-way control valve can bear high pressure difference, easy for connection.
4.While with low nominal size and pressure difference, converging control valve can be used in diverging occasion. However, while nominal size higher than DN100 and high pressure difference, converging control valve and diverging control valve can’t be exchanged.


Electric 3 way control valv specification:

Electric 3 way control valve body type: 3-way casting globe type
Spool type: 3-way double seat spool
Nominal size: DN20~300,、 NPS 3/4〞~ 12〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Electric 3-way control valve
material:
WCB/WCC/WC6/CF8/CF8M/CF3M
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
Electric 3-way control valve Actuator: Electric: 3810L series smart actuator, PSL series actuator.
