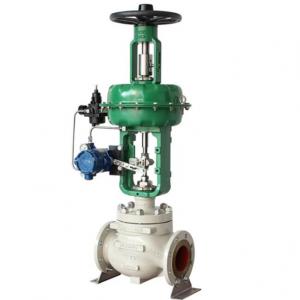

Pneumatic high pressure control valve Product introduction

　Pneumatic high pressure control valve is a special control valve for high pressure high temperature system.Pneumatic high pressure control valve is widely used for automatic adjustment and remote control of production process in chemical fertilizer, petrochemical, power station, light industry, etc.

Pneumatic high pressure control valve adopts compact valve body, with a shade flow passage that features low pressure loss, allows a large flow capasity and rangeability. Pneumatic high pressure control valve plug of Pneumatic high pressure control valve is highly vibration-resistant as the control valve is held by a top guide section which has a large slideing area. The flow shut-off performance complies with the ANSI Standard. The actuator of pneumatic high pressure control valve integrated with simplest mechanisms utilizes a compact yet powerful diaphragm actuator loaded with multiple springs.

The Pneumatic high pressure control valve is widely applicable for reliable control of high temperature, high pressure process lines.

Pneumatic high pressure control valve feature:

Pneumatic high pressure control valve Body type:	casting globe type
Spool type:	single seat,cage guiede
Nominal size:	DN20~80 NPS 3/4〞~ 3〞
Nominal pressure:	PN160 ~ 420、 CLASS 900LB ~ 2500LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Pneumatic high pressure control valve Bonnet type:	Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
pneumatic control valve Actuator:	Pneumatic:multi-spring diaphragm actuator, piston type actuator.

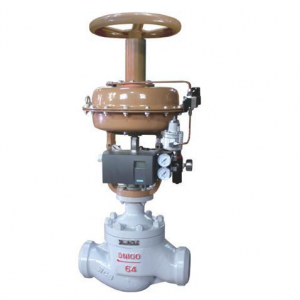

Pneumatic high pressure control valve Related Products
