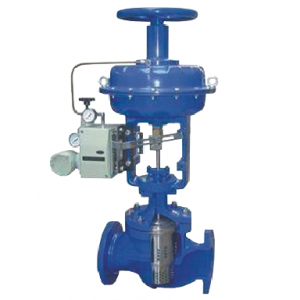

Pneumatic cage guided control valve

Pneumatic cage guided control valve Product introduction

　Pneumatic cage guided control valve is suitable for the place where has flash vaporization and cavitations generated by the high differential pressure, solid cages and prevent the Pneumatic cage guided control valve body from the damage of flash vaporization and cavitations. The fluid channel is streamlined by S shape with low ressure loss, high capacity, wide regulating range. The plug features big guiding area and good vibration resistance. Pneumatic cage guided control valve is equipped with mult-spring diaphragm actuator and compact in structure as well as big in output force.

Pneumatic cage guided control valve feature:

Body type	straight through casting globe type
Spool type:	balanced cage guided sleeve type
Nominal size:	DN20~200,、 NPS 3/4〞~ 8〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Pneumatic cage guided control valve bonnnet type:	Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Actuator:	Pneumatic: multi-spring diaphragm actuator, piston type actuator.

Pneumatic cage guided control valve material:

Component name	Control Valve Material
Body/Bonnet	WCB/WCC/WC6/CF8/CF8M/CF3M
Valve spool/Seat	304/316/316L(overlaying stellite alloy)
Packing	Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite
Gasket	Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
Diaphragm Cover	Normal:Q235,Special:304
Diaphragm	NBR with reinforced polyester fabric
Spring	Normal:60Si2Mn,Special:50CrVa
Control valve stem	2Cr13/17-4PH/304/316/316L
