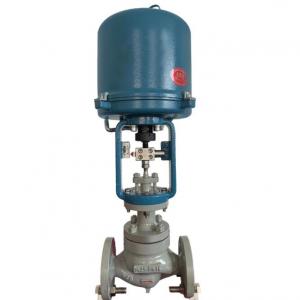

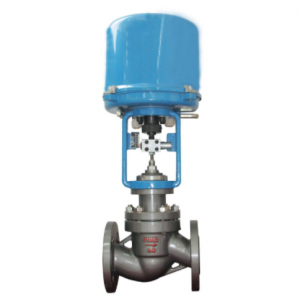

Electric 2 way control valve

Electric 2 way control valveElectric 2 way control valve
Electric 2 way control valve

Electric 2 way control valve Product introduction

 Electric 2 way control valve adopts single seated or cage guided structure according to the pressure difference,Electric 2 way control valve is applicable for low leakage requirement;Electric 2 way control valve adopts pressure-balanced spool structure, large allowed pressure differential, low noise&steady and reliable actuation;Electric actuator of  Electric 2 way control valve with servo system, no need the servo amplifier, can work when supplying power and input signal, with small sensitivity to temperature.

Electric 2 way control valve specifiation:

Electric control valve body type: straight through casting globe type
Spool type: balanced cage guided sleeve ype
Nominal size: DN25~300,、 NPS 1〞~ 12〞
Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange: FF、RF、MF、RTJ
Welding: SW、BW
Flange dimension: According to to IEC 60534
Electric 2 way control valve
material:
WCB/WCC/WC6/CF8/CF8M/CF3M
Packing: V type PFTE packing, flex. graphite packing, etc.
Gasket: Metal graphite packing
Actuator of control valve: Electric: 3810L series smart actuator, PSL series actuator.


Electric 2 way control valve actuator specifiation:
Electric 2 way control valve Type\ Method Electric actuator
3810L series (R type)
Intelligent integrated type
Usage Regulating
Air supply pressure or Power supply voltage Power: AC 220V±10%  50Hz
Or Power:  AC 380V±10% 50Hz
Connector Normal type:  cable inlet 2-PF(G1/2〞)
Explosive proof:  Protection jacket PF(G3/4〞)
Direct action Input signal increase, stem descend, valve close.
Reaction Input signal increase, stem ascend, valve open.
Input signal Input/output4~20mA.DC
Lag ≤0.8%FS
Linear type ≤+1%FS
Environmental temperature Standard type: -10℃~+60℃
With space heater : -35℃~+60℃
Explosive proof: -10℃~+40℃
Electric 2 way control valve
Accessories
Space heater (normal type)
Non-standard accessories, need special customized notes.
