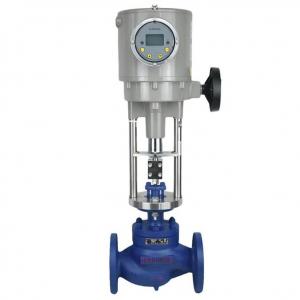

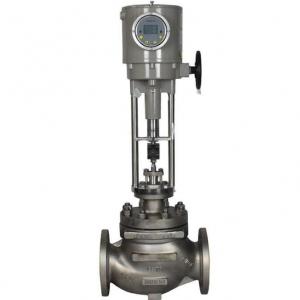

Explosion proof electric motorized control valve

Explosion proof electric motorized control valve Product introduction

　Explosion proof electric motorized control valve manufacturer, factory and supplier. Explosion proof electric motorized control valve is used for explosive environment such as explosive gas,coal and others, which is excellent in performance, and is a high-quality base type electric control valve product. Explosion proof electric motorized control valve is suitable for production process control systems for explosive media process conditions,which has reliable operating characteristics, small seat leakage, coarse flow characteristics, wide adjustable range, compact structure and smooth flow path. Explosion proof electric motorized control valve has good performance and stable operation , and can meet the user’s control needs in a wide range of applications.

Explosion proof electric motorized control valve features:

Explosion proof electric motorized control valve consists of 3810L or PSL series explosive proof electronic electric actuator and asingle-seat ( sleeve ) regulating valve. The actuator has an integrated structure with built-in electronic controller modules, eliminating the need for additional servo amplifiers . It has high precision and is easy to install The characteristics of Electric motorized water control valve is as follows:

Adopting balanced valve core, the unbalanced force is small, the pressure difference is allowed to be large, and the operation is stable
The large guide surface of the spool improves the oscillation caused by eddy currents and shocks and reduces damage
The noise of the ordinary single and double seat Electric motorized water control valve valve is reduced by about 10dB
Simple structure, convenient assembly, and disassembly

Explosion proof electric motorized control valve specifiation:

Electric motorized water control valve body type:	straight through casting globe type
Spool type:	balanced cage guided sleeve ype
Nominal size:	DN25~300,、 NPS 1〞~ 12〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Control valve material:	WCB/WCC/WC6/CF8/CF8M/CF3M
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Actuator of control valve:	Electric: 3810L series smart actuator, PSL series actuator.

Explosion proof electric motorized control valve specifiation:

Electric motorized control valve Type\ Method	Electric actuator
	3810L series ,PSL series or other type
	Intelligent integrated type
Usage	Regulating
Air supply pressure or Power supply voltage	Power: AC 220V±10% 50Hz Or Power: AC 380V±10% 50Hz
Connector	Normal type: cable inlet 2-PF(G1/2〞) Explosive proof: Protection jacket PF(G3/4〞)
Direct action	Input signal increase, stem descend, valve close.
Reaction	Input signal increase, stem ascend, valve open.
Input signal	Input / output 4～20mA.DC
Lag	≤0.8%FS
Linear type	≤+1%FS
Environmental temperature	Standard type: -10℃～+60℃ With space heater : -35℃～+60℃ Explosive proof: -10℃～+40℃
Electric Motorized control valve Accessories	Space heater (normal type) Non-standard accessories, need special customized notes.
