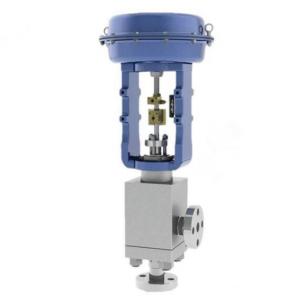

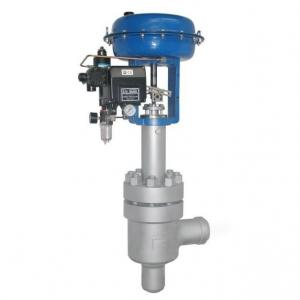

China high pressure angle control valve manufacturer, factory and supplier. High pressure angle control valve can be matched with electric acuator or pneumatic actuator. High pressure angle control valve body adopts an angular structure, unbalanced multi-stage pressure drop control valve is suitable for applications with high differential pressure and applications that produce flash evaporation and cavitation. According to the requirements in different service conditions, high pressure angle control valve is designed with various multihole cages that form a multi-stage pressure drop trim, so that the internal energy of high-speed media is consumed and flow velocity is reduced from the time when the fluids contact the first cage.
High pressure angle control valve is composed of various cages, the pressure is gradually reduced so that the medium pressure is always above the saturated vapor pressure, and the occurrence of flash evaporation and cavitation is eliminated. The standard configuration is the unbalanced single-seat plug and the plug and seat are subjected to hardening treatment to prolong the service life of the trim. High pressure angle control valve of large sizes can be designed with a balanced single-seat plug structure.


High pressure angle control valve specification
Body Size: 1/2″(DN15)～4″(DN100)
Body Rating: ANSI Class 150#～2500#
Fluid Temperature:  -196～+550℃
Connections: Flanges(FF,RF,RJ,RTJ),Socket Weld, Butt Weld(SW,BW)
Body Materials: WCB,WC6,LCB,CF8,CF8M,etc.
Plug Materials: 316,316+Stellite,316+RTFE etc.
Seat Leakage: ANSI Class IV(Cv×0.01%)
Rangeability: 30:1～10:1
Flow Characteristics: Linear, EQ%


High pressure angle control valve structure

Trim feature
Sleeve guided unbalanced trim structure, a combination of multi-hole cages

Body type
Straight-through type, angle type

Bonnet type
Standard type, heat dissipation type, cryogenic type, bellows

Flow characteristic:
Equal percentage, linear, quick open

Shut-off class
ASME B16.104 V (standard metal seat) ASME B16.104 VI (shut-off soft seat)

Connection type
The flange type, butt welding type

Applicable temperature range
-196°C – 570°C

Actuator type
Pneumatic diaphragm actuator
Pneumatic piston actuator
Electric actuator
