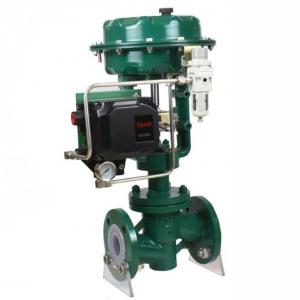

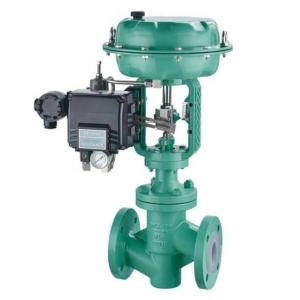

PTFE FEP PFA Lined Globe Type Control Valve

PTFE FEP PFA Lined Globe Type Control Valve Product introduction

　China PTFE FEP PFA Lined Control Valve manufacturer, factory and supplier. PTFE FEP PFA Lined Globe Type Control Valve is carbon steel body with PTFE FEP PFA Lined, two way, top guided, bellow sealed, bolted bonnet, single spring & diaphragm actuated , Pneumatically / Electrically Operated , On-Off / Throttling /Regulating type Control Valve. PTFE FEP PFA Lined Globe Type Control Valve is widely used for Pressure control / temperature , flow control & level control of severely corrosive, hazardous, pure liquid, vapors and gas media in the chemical, pharmaceutical and other industrial applications.

PTFE FEP PFA Lined Globe Type Control Valve feature:
1. Good corrosion resistance: the inner cavity of Pneumatic fluorine lined control valve body, core, seat are lined with 3mm thick fluorine (PTFE,PEP,PFA) , which can withstand strong corrosive fluid.
2. Good sealing performance: double sealing with PTFE bellows and packing.
3. The leakage quantity is little, because the Pneumatic fluorine lined control valve core and seat are soft seal, leakage was far below the national Ⅳ level standard.
4. High adjustment accuracy: Pneumatic fluorine lined control valve adopts precise and small pneumatic and electric actuators, small in size and light in weight.

PTFE FEP PFA Lined Globe Type Control Valve specification:

PTFE FEP PFA Lined Control Valve Body type:	straight through casting globe type Fluoride (PTFE,FEP,PFA) lined
Spool type:	non-balanced single seat plug type
Nominal size:	DN15~300,、 NPS 1/2〞~ 12〞
Nominal pressure:	PN10 ~ 16、 CLASS 150LB
Connection: flange:	RF
Shaft Structure	Bellow seal
Flange dimension:	According to to IEC 60534
Pneumatic fluoride lined control valve Bonnet type:	Ⅰ:standard type（-29℃~150℃）
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Actuator:	Pneumatic: multi-spring diaphragm actuator, piston type actuator. Electric actuator: On-off or regulating type actuator.
