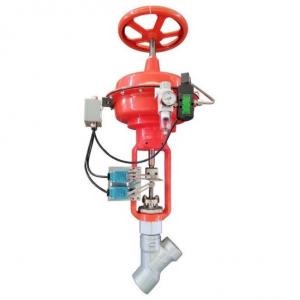

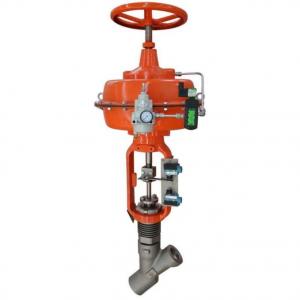

Pneumatic high temperature steam drain valve

Pneumatic high temperature steam drain valve Product introduction

　China high pressure high temperature steam drain valve manufacturer, factory and supplier, Pneumatic high temperature steam drain valve is mainly used for Steam piping rapid hydrophobic system, Main steam system, extraction system, boiler drain system with forged steel A105、12Cr1MoV、F22、F91、F92、316L,etc, according to different working temprature and pressure.

Pneumatic high temperature steam drain valve specification:

Performance parameter
Diameter：DN10~DN100
Pressure：PN16~PN420
Flow characteristics：
1、Quick opening
Sturcture: Overall forging Y type
Body Material：
A105、12Cr1MoV、F22、F91、F92、316L,etc
Application：Steam piping rapid hydrophobic system, Main steam system, extraction system, boiler drain system

Pneumatic high temperature steam drain valve feature:

Excellent Packing System
Inside: using high temperature resistant
Stellite cobalt-based hard alloy disc
Up and down guiding ring on the disc
With best CV value
Sealing surface with special overlaying welding
Replaceble trim structure
