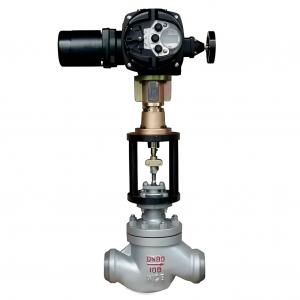

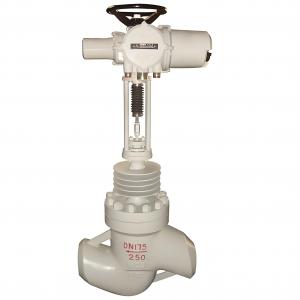

T961Y Electric regulating valve

T961Y Electric regulating valve Product introduction

　T961Y Electric regulating valve manufacturer, factory and supplier, the size from DN15 to DN300, the pressure class PN16 to PN420. T961Y Electric regulating valve is composed of intelligent electric actuator and straight through low flow resistance balance sleeve control valve, the body is welded end, the spool adopts pressure balance spool, structure, spool is cylindrical, guided by the inner circular guide and top guide of the sleeve, so the unbalance force on the valve stem is small, stable operation, good performance, is a force balance type regulating valve. T961Y Electric regulating valve is suitable for the occasions where the pressure difference between the front and back ends of the valve is high. Because the valve core has the side guide of the sleeve, the vibration caused by the eddy current impact is weakened, so it has the advantages of low noise, small cavitation flash effect and long service life. However, the leakage rate of the seat is slightly larger than that of the single-seat valve.

T961Y Electric regulating valve is the DKZ type electric unit combination instrument in the execution unit, it is one of the important links in the production process automatic regulation system, it takes AC 380V or AC220V power supply voltage as the action force, accept the unified standard signal 0~10mA DC or 4~20mA DC, converts this into the up and down displacement corresponding to the input signal, automatically controls the valve and changes the opening displacement of the valve, so as to achieve the automatic adjustment and control of the process pipeline fluid medium such as pressure, flow rate, temperature, liquid level and other parameters.

T961Y Electric regulating valve specification:

Nominal diameter: DN15~300

Nominal pressure: PN16~420

Operating temperature: ≤540℃

Adjustment range: 10:1 ~ 100:1

Adjustment characteristics: linear, equal percentage

Body form: straight, Z shape, Angle, cast or forged welded structure, flange or welded connection

Actuator: electric straight (stroke or Angle stroke actuator),etc
