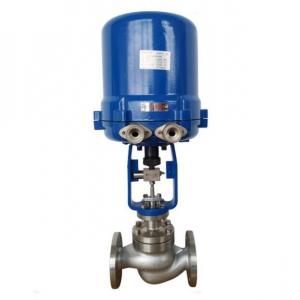

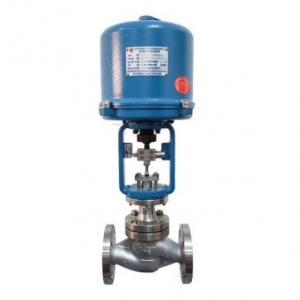

ZAZP Motorized single seat control valve

ZAZP Motorized single seat control valve Product introduction

　ZAZP Motorized single seat control valve adopts unbalanced single seated structure for low pressure difference medium. ZAZP Motorized single seat control valve is applicable for low leakage requirement. Electric actuator of ZAZP Motorized single seat control valve with servo system, no need the servo amplifier, can work when supplying power and input signal, with small sensitivity to temperature.

ZAZP Motorized single seat control valve for regulating media flow, pressure and liquid level.According to the opening of regulatory signals, automatic control valves, so as to achieve medium flow, pressure and level of regulation.

ZAZP Motorized single seat control valve is used to drive electric power and thus drive the valve actuator to control the flow, which is the industrial automation and process control is an important instrument of execution units. As the degree of automation industry increasing, more and more being used in various industrial fields. ZAZP Motorized single seat control valve conpared with conventional pneumatic control valve has obvious advantages: saving (only consume energy when working), environmental (carbon emissions), quick and easy installation (no complex pneumatic piping and pump stations), working power supply: AC22V 380V and other voltage levels.

ZAZP Motorized single seat control valve signal received by the industrial automation and control systems (eg: 4 ~ 20mA) to drive the change in cross-sectional area the size of the valve plug and seat piping between the control medium flow, temperature, pressure, etc..

Electric single seated control valve specifiation:

Electric control valve body type:	straight through casting globe type
Spool type:	unbalanced seated
Nominal size:	DN15~300,、 NPS 1/2〞~ 12〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Electric 2 way control valve material:	WCB/WCC/WC6/CF8/CF8M/CF3M
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Actuator of control valve:	Electric: 3810L series smart actuator, PSL series actuator.
