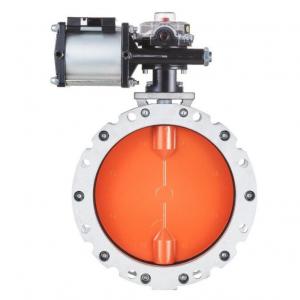

Aluminium alloy body butterfly valve

Aluminium alloy body butterfly valveAluminium alloy body butterfly valve
Aluminium alloy body butterfly valve

Aluminium alloy body butterfly valve Product introduction

 China Aluminium alloy body butterfly valve manufacturer, factory and supplier. V1FS V2FS Aluminium alloy body butterfly valve consist of two high-pressure aluminium alloy die-cast semi-body for dust or powder service. V2FS Aluminium alloy body butterfly valve comes with identical top and bottom flange, V1FS Aluminium alloy body butterfly valve has a top flange and beaded bottom section – suitable for the attachment of a flexible sleeve.

Aluminium alloy body butterfly valve Feature:
V1FS Aluminium alloy body butterfly valve with top flange and beaded bottom section suitable for fixing a flexible sleeve
V2FS Aluminium alloy body butterfly valve with identical top and bottom flange
Dust tight and pressure-proof up to 0.2 bar (2.9 PSI)
High-pressure, aluminium alloy die-cast semi-bodies
Disc in cast iron, SINT engineering polymer, or stainless steel
Seals for standard or food-grade applications
Made up of few components
Used for powders, granules
Lightweight and easy to handle


Aluminium alloy body butterfly valve Benefit:
Highly abrasion-resistant
Easy to fit
Time-saving maintenance
Low operating and maintenance costs
Interchangeable discs
Ex-stock delivery

Aluminium alloy body butterfly valve Function:
To close silos, hoppers or bins containing powders or granules, VFS Aluminium alloy body butterfly valve range among the most widely used equipment worldwide.

Aluminium alloy body butterfly valve used to be custom-built items for specific applications, which has turned into a mass-produced, industrial product with features that allow extremely versatile use.
VFS Aluminium alloy body butterfly valve is used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution

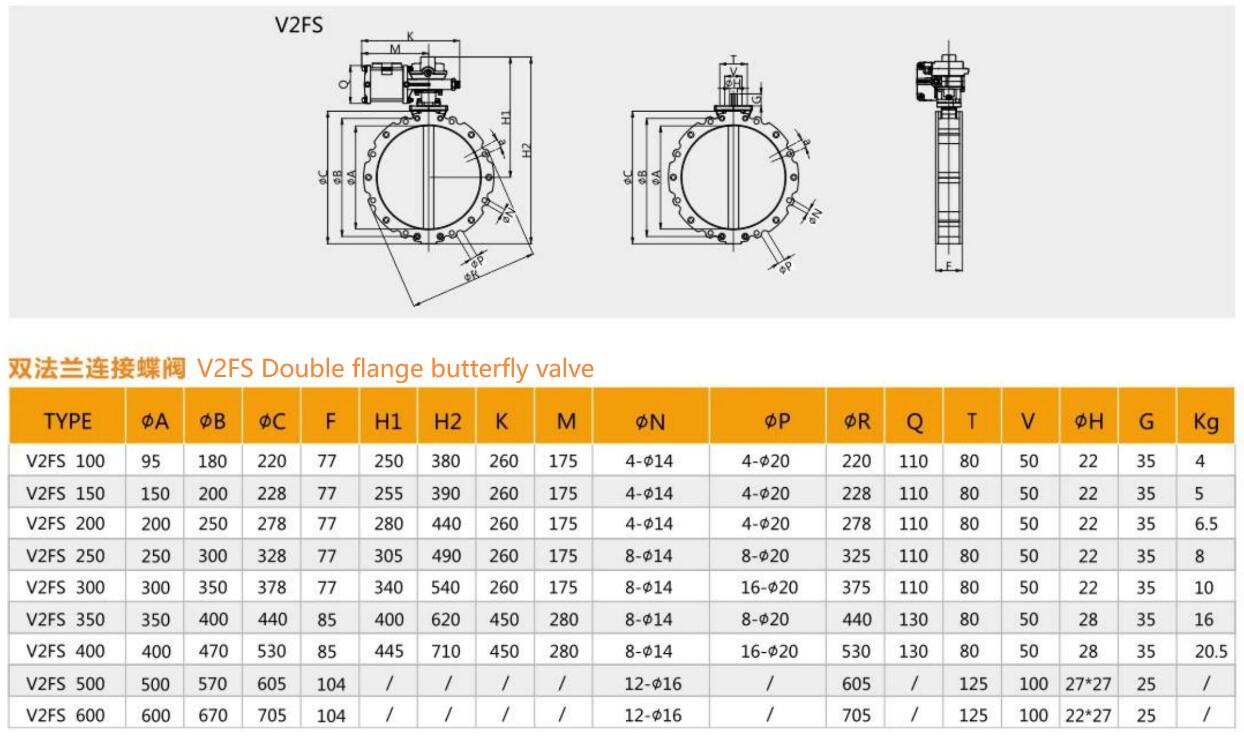

Aluminium alloy body butterfly valve Main dimension

Aluminium alloy body butterfly valve
