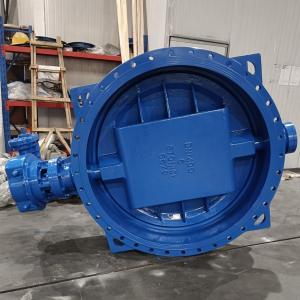

STQNiCr Seawater butterfly valve

STQNiCr Seawater butterfly valveSTQNiCr Seawater butterfly valve
STQNiCr Seawater butterfly valve

STQNiCr Seawater butterfly valve Product introduction

 STQNiCr Seawater butterfly valve manufacturer,factory and supplier for DN50 to DN2400 Soft seat butterfly valve for power plant seawater system. STQNiCr Seawater butterfly valve is on base of ductile iron material added Nicke and chrom alloy, which is a low cost sea water butterfly valve, it can save a lot of cost for the seawater power plant system.

STQNiCr Seawater butterfly valve drive mode can be manual, worm gear, pneumatic, electric, flange or chuck can be connected. The structure can adopt single eccentric, neutral, double eccentric, three eccentric structure, sealing structure, soft seal and hard seal can be used. Pressure range PN0.1-2.5Mpa, nominal diameter DN40~2800mm, the material can be cast steel or stainless steel. STQNiCr Seawater butterfly valve developed by our company has compact structure, 90° sealing, reliable sealing and long service life. STQNiCr Seawater butterfly valve is widely used in water plants, power plants, steel plants, paper mills, chemical plants, food and other systems. Adjust and cut off use.

STQNiCr Seawater butterfly valve specificatin
Valve Manufacturing standards: API, ANSI, BS, DIN, JIS
Butterfly valve Sealing: metal-seated, resilience-seated
Butterfly Valve Structures: double offset, triple offset
Valve Size range:DN50mm - DN2400mm)
Pressure: PN0.6MPa to PN2.5MPa
Double Offset Butterfly Valve Applicable temperature: from -20 degrees C to 100 degrees C
Butterfly Valve Connection: wafer, flanged


STQNiCr Seawater butterfly valve Related Products
