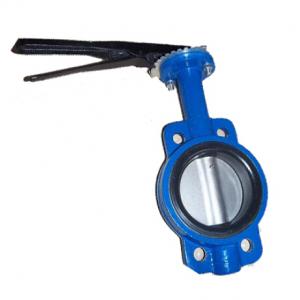

D71J Wafer rubber lined butterfly valve Product introduction

D71J Wafer Rubber Lined Butterfly Valve is used in on-off and control flow of medium in vaired pipelines such as foodstuff,beverage,machine,chemical engineering,industrial enviromental proction,water treatment and building ect .Flanged rubber seat butterfly valve: ANSI, DIN, JIS, GB, etc.

D71J Wafer Rubber Lined Butterfly Valve Usage

Sealing Ring Material Code

Applicable Temperature

Applicable Medium

NR

≤85°C

water, air, acid-base

CR

≤85°C

water, gas, acid-base

NBR

≤100°C

water, oil

EPDM

≤120°C

water, steam, acid-base

FKM

≤150°C

water, steam, strong acid-base





D71J Wafer rubber lined butterfly valve Technical parameters

Description Standard
Design and manufacture EN593
Face to face ISO5752 series14, EN558-1 series 14, DIN3202 F4
Flange and drilling ISO7005-2, EN1092,
Pressure test EN12266
Top flange of bare shaft valve ISO5211
Top flange on worm gearbox for e-actuator ISO5210

D71J Wafer rubber lined butterfly valve Main part material

Name Material
Body ductile cast iron, WCB, stainless steel
Disc ductile cast iron, WCB, stainless steel, Al-bronze
Stem SS420, SS431
Disc seat ring EPDM,NBR,VITON
Body seat ring SS304
Retainer SS304, SS316
Shaft bearing Al-bronze, self-lubricating bearing
Bolt & nuts 8.8 grade galvanized, SS304
Coating epoxy coating, thickness: min. 250 microns, color code: RAl5015, 5017, 5010, and etc.

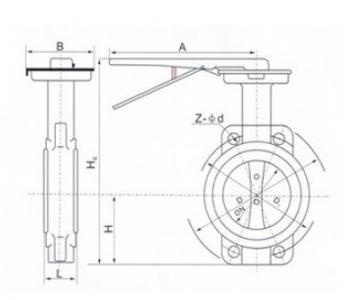

D71J Wafer rubber lined butterfly valve Main dimension

DN(mm)

PN(MPa)

Working Temperature(MPa)

L
mm

D
mm

D1
mm

n-Φd
mm

H1
mm

H2
mm

S
mm

H3
mm

Weight Kg/kilos

40



1.6

1.0



1.6

1.0

33

150

110

4-18

55

100

235

27

2

50

43

165

125

4-18

64

120

235

27

2.5

65

46

185

145

4-18

80

120

235

27

4.5

80

46

200

160

8-18

112

130

265

27

5.5

100

52

220

180

8-18

90

145

265

27

6.5

125

56

250

210

8-18

112

160

365

32

11.5

150

56

285

240

8-22

135

175

365

32

13.5
