D943H-16C Electric flanged butterfly valve

D943H-16C Electric flanged butterfly valve Product introduction

D943H-16C Electric flanged butterfly valve body and disc is made of carbon steel , cast iron , ductile iron and stainless steel, the seat is rubber material ,which mainly used for water system in industry.
D943H-16C Eletric flanged butterfly valve feature:
1. Correcting holes are made on flange according to standard, easy correcting during the installation.
2. Through-out bolt or one-side bolt used. Easy replacing and maintenance.
3. Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.

D943H-16C Electric flanged butterfly valve Performance:
Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):
1.0, 1.6, 2.0, 2.5

D943H-16C Electric flanged butterfly valve Testing pressure (water) (MPA)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure

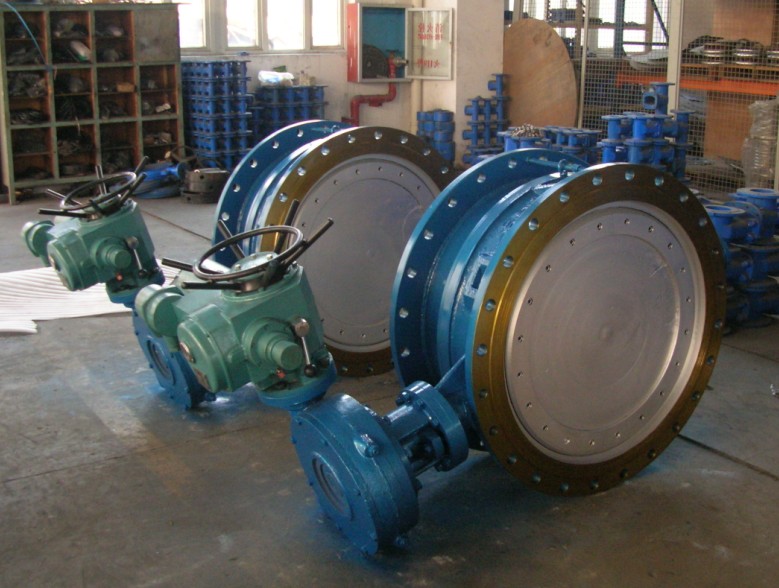

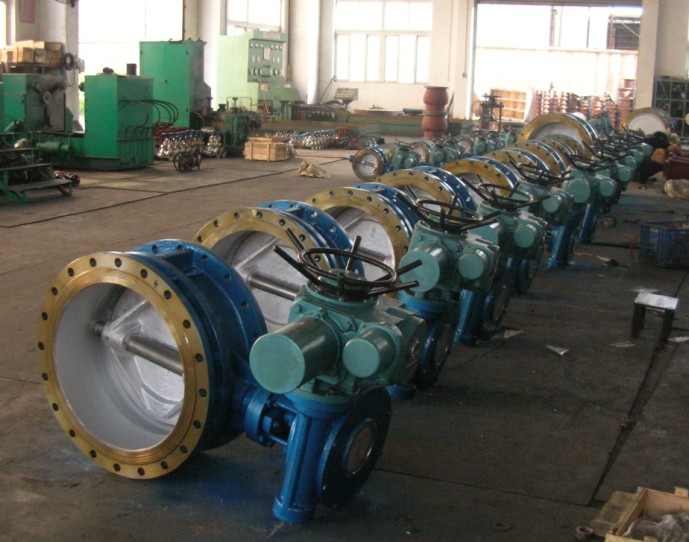

D943H-16C Electric flanged butterfly valve Product show
