High temperature butterfly valve

High temperature butterfly valve Product introduction

High temperature butterfly valve feature：
1 High temperature butterfly valve is used for ventilation and dust removal pipeline system, through controlling signal to regulate the media flow, to realize industrial process automation and computer centralized control. High temperature electric butterfly valve can work for shutting on/off and regulating flow.

2 Two type of high temperature butterfly valve including regulating type and tight sealing type are provided, the structure and leakage class should be noted in the purchase order.

3 High temperature butterfly valve adopts sectional axils design , thin disc, it is a type of low flow resistance valve .

4 High temperature butterfly valve has two types including flange type and wafer type , the flange type has the same connection dimension, the wafer type is short in connection length, light in weight , saving assembly space, the difference between the types are the connection manner to pipeline, the other feature are the same.

5 According to user’s need, high temperature butterfly valve could adopt electric angle travel, electric straight travel, membrane pneumatic driving and related accessories, the specification and requirements should be noted in detail when purchasing.

High temperature butterfly valve Main dimension

DN	Outline dimension
DN	L	D1	D	Z-d	H	H0	A	B
50	108	110	140	4-14	70	215	270	65
65	112	130	160	4-14	80	235	270	65
80	124	150	190	4-18	95	263	270	65
100	127	170	210	4-18	105	283	270	65
125	140	200	240	8-18	120	313	310	65
150	140	225	265	8-18	132.5	338	310	65
200	152	280	320	8-18	160	493	365	90
250	165	335	375	12-18	187.5	550	365	90
300	178	395	440	12-22	220	615	365	90
350	190	445	490	12-22	245	678	365	90
400	216	495	540	16-22	270	727	365	90
450	222	550	595	16-22	297.5	782	365	90

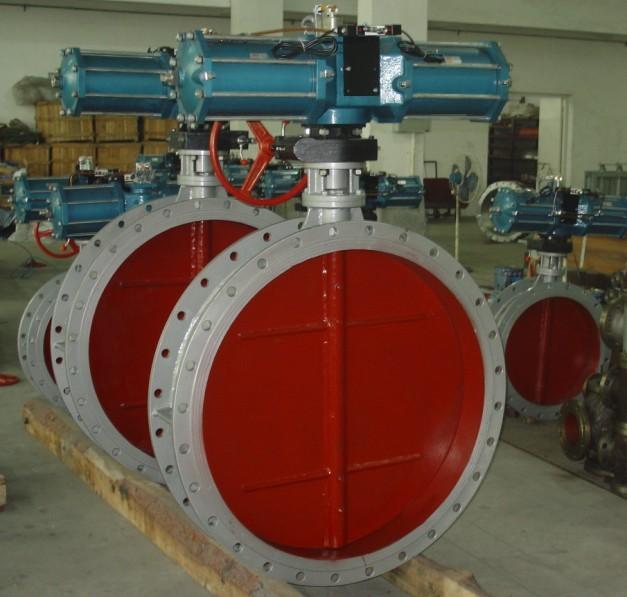

High temperature butterfly valve Product show
