fire water signal butterfly valve Product introduction
fire water signal butterfly valve Technical parameters
|
Model
|
XD371X-10
|
XD371X-16
|
|
|
PN（MPa）
|
1.0
|
1.6
|
|
|
Temperature（℃）
|
≤65
|
||
|
Medium
|
Water,fire water,etc.
|
||

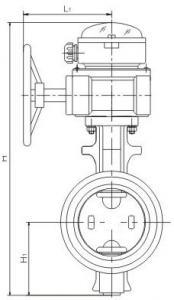

fire water signal butterfly valve Main dimension
| XD371X-10 | ||||||||
| DN（mm） | L | D | K | n-Фd | H | H1 | W | W1 |
| 50 | 43 | 165 | 125 | 4-Ф18 | 80 | 320 | 266 | 90 |
| 65 | 46 | 185 | 145 | 4-Ф18 | 89 | 330 | 266 | 90 |
| 80 | 46 | 200 | 160 | 8-Ф18 | 95 | 340 | 266 | 90 |
| 100 | 52 | 220 | 180 | 8-Ф18 | 114 | 360 | 266 | 90 |
| 125 | 56 | 250 | 210 | 8-Ф18 | 127 | 380 | 266 | 90 |
| 150 | 56 | 285 | 240 | 8-Ф22 | 139 | 390 | 266 | 90 |
| 200 | 60 | 340 | 295 | 8-Ф22 | 175 | 525 | 125 | 90 |
| 250 | 68 | 395 | 350 | 12-Ф22 | 203 | 555 | 125 | 90 |
| 300 | 78 | 445 | 400 | 12-Ф22 | 242 | 610 | 190 | 90 |
