D671F4 Pneumatic PTFE line butterfly valve Product introduction

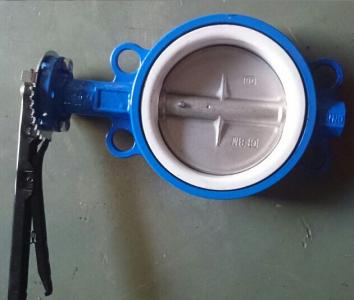

D671F4 Pneumatic PTFE line butterfly valve consists of body ,stem ,disc , actuator (manual actuator, worm-gear actuator , aerodynamic actuator or electric actuator) , and wafer type butterfly valve can implement the process for turning on turning off and regulating the flow by the circumrotation of stem and disc that is droved by actuators.
D671F4 Pneumatic PTFE line butterfly valve feature:
1.Simple and compact construction. Small in size and light in weight. Easy transportation, installation and maintenance.
2. Quick 90 degrees on-off operation. Minimized operating torque ,energy saving.
3. Excellent sealing performance with ZERO leakage. Long service life.
4. Wide selection of materials ,applicable for various media..
5. Flow curve tending to straight line. Excellent regulation performance.
D671F4 Pneumatic PTFE line butterfly valve Technical parameters
|
Size:
|
DN50-DN1000
|
|
End flange:
|
ANSI B 16.1,EN1092,AS2129
|
|
Face to face:
|
ANSI B 16.10
|
|
Top flange:
|
ISO 5211
|
|
Normal pressure:
|
PN1.0/1.6MPa(150/200PSI)
|
|
Body:
|
CI/DI/WCB/ALB/CF8/CF8M
|
|
Disc:
|
DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
|
|
Stem:
|
410/416/304/431/17-4PH/316/monel
|
|
Seat:
|
NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE
|
|
Suitable temperature:
|
-10~120
|
|
Medium:
|
Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
|
