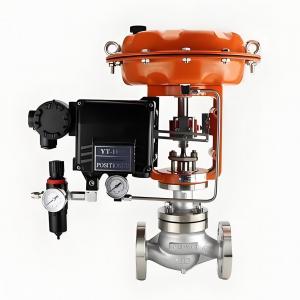

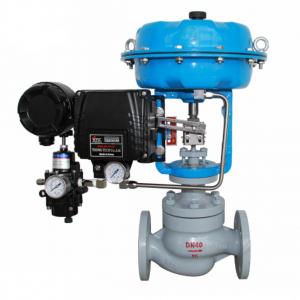

Pneumatic Control Valve with YT-1000 Positioner

Pneumatic Control Valve with YT-1000 Positioner Product introduction

　Pneumatic Control Valve with YT-1000 Positioner manufacturer,factory and supplier, Pneumatic Control Valve with YT-1000 Positioner is most popular control valve in industrial automatic control system.The actuator of pneumatic pressure control valve operates the valve by YT-1000 Positioner ,which is mechanical type positioner with signal feedback optional. The control system monitors conditions such as flow rate, temperature, level, and pressure via sensors. The sensors send feedback signals to the controller which performs any logic, then sends a signal to the control valve positioner. The control signal can be a 0-10VDC or 4-20mA electrical signal, or a 3-15 psi pneumatic signal. The positioner then controls the actuator

Pneumatic Control Valve with YT-1000 Positioner feature:

Pneumatic control valve Body type:	straight through casting globe type
Spool type:	balanced cage guided sleeve type
Nominal size:	DN20~200,、 NPS 3/4〞~ 8〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Pneumatic pressure flow control valve material	WCB,WC6,WC9,CF8,CF8M,etc.
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
control valve Actuator:	Pneumatic: multi-spring diaphragm actuator, piston type actuator.
