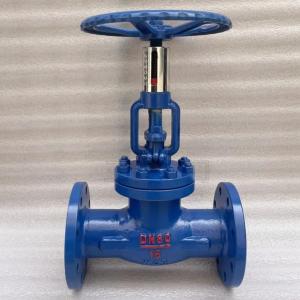

T40H Manual Control Valve

T40H Manual Control Valve Product introduction

T40H Manual Control Valve manufacturer, factory and supplier. T40H Manual Control Valve is a special function regulating valve that, in addition to its regulating valve function, can also achieve flow quantization. T40H Manual Control Valve can effectively solve the problem of uneven room temperature in heating (air conditioning) systems. Due to the fact that this valve is equipped with an opening degree indicator, a locking device for the opening degree, and a pressure measurement valve for flow measurement, as long as the appropriate scale balance valve is installed on each branch and the user's entrance, and the special intelligent instrument is used for one-time calibration and locking, the total water volume of the system can be controlled within a reasonable range, thereby overcoming the unreasonable phenomenon of "large flow and small temperature difference" and becoming an ideal product for heating systems.

T40H Manual Control Valve can be installed on the supply pipe or the return pipe, but it is usually installed on the return pipe. Especially for high-temperature circuits, T40H Manual Control Valve is more convenient for commissioning if it is installed on the return pipe. After installing the balancing valve on the supply and return pipes, there is no need to install the stop valve.

T40H Manual Control Valve specification:
Product Name: T40H Manual Control Valve
Product Model: T40H
Nominal Diameter: DN15~DN600
Structure Type: Globe Valve
Nominal Pressure: 1.0MPa~1.6MPa~2.5MPa
Connection Type: Flange, Threaded, Welded
Operating Temperature: -29ºC~+350ºC
Driving Method: Manual
Body Material: Grey Cast Iron, Cast Steel, Stainless Steel
Standard: Chinese GB, German DIN, American API, ANSI
Medium: Water, Steam

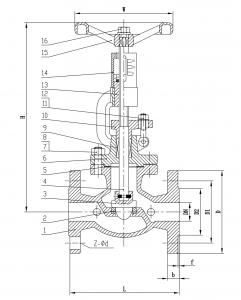

T40H Manual Control Valve structure:
