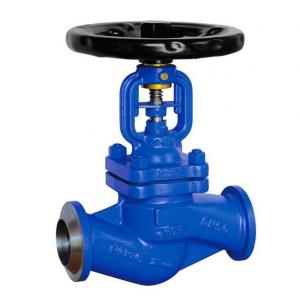

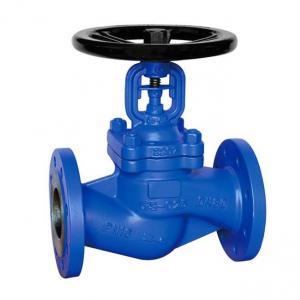

Bellows Seal Globe Valve For Chlorine Gas

Bellows Seal Globe Valve For Chlorine GasBellows Seal Globe Valve For Chlorine Gas
Bellows Seal Globe Valve For Chlorine Gas

Bellows Seal Globe Valve For Chlorine Gas Product introduction

China Bellows Seal Globe Valve Manufacturer, Factory and Supplier. Bellows Seal Globe Valve for Chlorine Gas is suitable Chlorine Gas, Gas Ammonia, and Liquid Ammonia , in dissecting or connecting the pipeline system. Bellows sealed Globe Valve is leak proof, long service life, basically maintenance-free. Bellows Seal Globe Valve is widely used in Steam, Gas Ammonia, Liquid Ammonia, Cooling and Freezing Systems, Chlorine, Liquid Chlorine, Phosgene and other Toxic Gases industries.

Bellows Seal Globe Valve For Chlorine Gas specification

Design & Manufacture Standards :  Based on API 6D , ASME b16.34, ISO 9001 ,DIN3356-82 customers requirement.

Temperature range : -40 °C~+80°C

Size :NPS 1/2”-24” (DN 15-DN600)

Pressure range :ASME 900 - ASME 2500 , 1.6Mpa,2.5Mpa,4.0Mpa

Material :WCB,LCB,LCC,LF2,CF8.CF8M,CF3.CF3M....

Operated Type: Handwheel or Gear with padlocking.,Pneumatic, hydraulic /electric.

Testing and Inspection :Compliance with API 6D &ISO 5208 & API 598, DIN3230-81 inspection and testing .

Suitable Medium: Gas Ammonia, Liquid Ammonia, Cooling and Freezing Systems, Chlorine, Liquid Chlorine, Phosgene and other Toxic Gases industries.

Bellows Seal Globe Valve For Chlorine Gas feature
1. The hydraulically formed bellows forms the first seal, Bellows Seal Globe Valve for Chlorine Gas is the key component of the metal bellows, the lower end and the stem assembly are automatically welded by welding, the upper end and the connecting plate are automatically rolled and welded, in the fluid medium and the atmosphere. A metal barrier is formed to ensure zero leakage of the valve stem.
2. The multi-stage PTFE packing combination in the stuffing box forms a second seal on the bellows, which increases the reliability of the seal.
3. The multi-stage PTFE sealing material is used in the upper sealing device to form a combined seal to ensure that the packing box has no medium leakage during the service life, which eliminates the weak seal of the ordinary valve packing box, the medium is easy to leak, and even causes accidents. may.
4. The middle flange adopts the groove sealing structure to ensure the reliable sealing of the middle flange even in the case of fluctuation of the pipeline pressure.
5. The sealing pair matching structure adopts cone and flat type, and the seal is automatically compensated to achieve double insurance effect, stable sealing performance, no adhesive wear and long service life.
