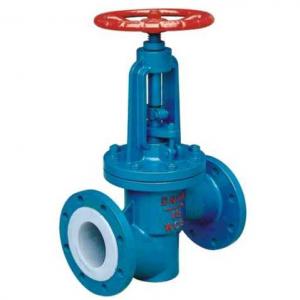

J41F4-16C PTFE lined globe valve

J41F4-16C PTFE lined globe valveJ41F4-16C PTFE lined globe valve
J41F4-16C PTFE lined globe valve

J41F4-16C PTFE lined globe valve Product introduction

J41F4-16C PTFE lined globe valve

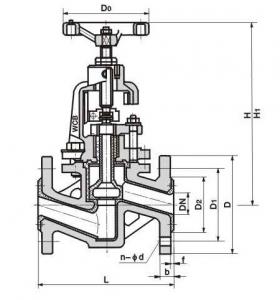

J41F4-16C PTFE lined globe valve Main dimension

Size L D D1 D2 f b n-d D0 H H1
DN NPS 1.0MPa
15   90 95 65 45 2 14 4-14 100 240 265
20   95 105 75 55 2 16 4-14 100 245 270
25 1 100 115 85 65 2 16 4-14 120 250 275
32 1 105 135 100 78 2 18 4-18 120 260 290
40 1 115 145 110 85 3 18 4-18 140 290 325
50 2 125 160 125 100 3 20 4-18 140 300 335
65 2 145 180 145 120 3 20 4-18 160 355 400
80 3 155 195 160 135 3 22 4-18 160 400 450
100 4 175 215 180 155 3 22 8-18 180 455 495
125 5 200 245 210 185 3 24 8-18 180 530 560
150 6 225 280 240 210 3 24 8-23 240 605 650
200 8 275 335 295 265 3 26 8-23 240 650 770
250 10 325 390 350 320 3 28 12-23 280 680 800
300 12 375 440 400 368 4 28 12-23 280 710 835
1.6MPa
15   90 95 65 45 2 14 4-14 100 240 265
20   95 105 75 55 2 16 4-14 100 245 270
25 1 100 115 85 65 2 16 4-14 120 250 275
32 1 105 135 100 78 2 18 4-18 140 260 290
40 1 115 145 110 85 3 18 4-18 140 290 325
50 2 125 160 125 100 3 20 4-18 160 300 335
65 2 145 180 145 120 3 20 4-18 180 355 400
80 3 155 195 160 135 3 22 8-18 240 400 450
100 4 175 215 180 155 3 24 8-18 240 455 495
125 5 200 245 210 185 3 26 8-18 280 530 560
150 6 225 280 240 210 3 28 8-23 320 605 650
200 8 275 335 295 265 3 30 8-23 360 650 770
2.5MPa
15   90 95 65 45 2 16 4-14 120 245 270
20   95 105 75 55 2 16 4-14 120 250 275
25 1 100 115 85 65 2 16 4-14 140 260 290
32 1 105 135 100 78 2 18 4-18 140 290 325
40 1 115 145 110 85 3 18 4-18 160 300 335
50 2 125 160 125 100 3 20 4-18 180 355 400
