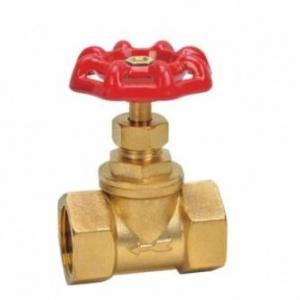

J11W-16T Screw brass globe valve Product introduction

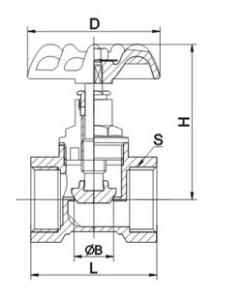

J11W-16T Screw brass globe valve Main dimension
| DN | SIZE | L | H | D | S | φB |
| 15 | 1/2 | 44 | 60 | 53 | 24.5 | 11 |
| 20 | 3/4 | 50 | 64 | 53 | 30 | 16 |
| 25 | 1 | 60 | 73 | 58 | 37 | 17.5 |
| 32 | 1-1/4 | 71 | 91 | 65 | 46.5 | 27 |
| 40 | 1-1/2 | 80 | 105 | 90 | 52.5 | 32 |
| 50 | 2 | 93.5 | 107 | 98 | 65.5 | 40 |
