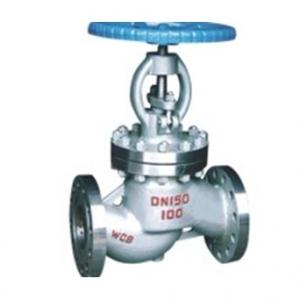

J41H Carbon steel globe valve

J41H Carbon steel globe valveJ41H Carbon steel globe valve
J41H Carbon steel globe valve

J41H Carbon steel globe valve Product introduction

J41H Carbon steel globe valve

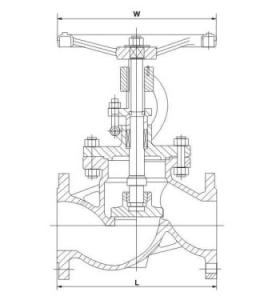

J41H Carbon steel globe valve Main dimension

2.5MPa DN L D D1 D2 b n-Φd H D0
  10 130 90 60 40 16 4-Φ14 198 120
15 130 95 65 45 16 4-Φ14 218 120
20 150 105 75 55 16 4-Φ14 258 140
25 160 115 85 65 16 4-Φ14 275 140
32 180 135 100 78 18 4-Φ18 280 160
40 200 145 110 85 18 4-Φ18 330 180
50 230 160 125 100 20 4-Φ18 350 200
65 290 180 145 125 22 8-Φ18 400 280
80 310 195 160 135 22 8-Φ18 355 280
100 350 230 190 160 24 8-Φ23 415 320
125 400 270 220 188 28 8-Φ25 460 360
150 480 300 250 218 30 8-Φ25 510 450
200 600 360 310 278 34 12-Φ25 710 500
250 622 425 370 332 36 12-Φ30 786 550
300 698 485 430 390 40 16-Φ30 925 600

J41H Carbon steel globe valve Product order instruction
